726 Fluke Process Calibrator New

726 Fluke Process Calibrator New

$5,288.99
$5,288.99 $5,288.99
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • More precise measurement and calibration source performance, accuracies of 0.01%.
  • Transmitter error% calculation, interpret calibration results without a calculator
  • Memory storage for up to 8 calibration results, return stored calibration data from the field for later analysis
  • Frequency totalizer and frequency pulse train source mode for enhanced flowmeter testing
  • HART mode inserts 250 Ω resistor in mA measure and source for compatibility with HART instrumentation
  • Integrated pressure switch test allows you to capture the set, reset and deadband of a switch
  • Custom RTD curves, add calibration constants for certified RTD probes for enhanced temperature measurement.
  • New voltage input protection design for improved reliability Two separate channels; measure, source and view process signals simultaneously
  • Measure volts, mA, RTDs, thermocouples, frequency, and resistance to test sensors and transmitters
  • Source/simulate volts, mA, thermocouples, RTDs, frequency, and pressure to calibrate transmitters
  • Measure or *source pressure using any of 29 Fluke 700Pxx Pressure Modules
  • Source mA with simultaneous pressure measurement to conduct valve and I/P tests
  • Perform fast linearity tests with auto step and auto ramp features
  • Power transmitters during test using 24 V loop supply and simultaneous mA measurement
  • Store frequently-used test setups for later use
  • Three-year warranty
  • *Pressure pump required*
View full details
More Details
Specifications
Datasheets

Accessories:

  • TL75 Test Leads
  • AC72 Test Clips
  • One pair of stackable test leads
  • Product overview manual (print) and user’s manual
  • (CD-ROM) in 14 languages

Specifications:

  • Voltage - 0 to 100 mV, 0.01 mV, 0.01 % Rdg + 2 LSD, Max load 1 mA
  • mA - 0 to 24, 0.001 mA, 0.01 % Rdg + 2 LSD, Max load 1000 ?
  • mV (TC terminals) - -10.00 mV to +75.00 mV, .01 mV, 0.01 % of range + 1 LSD
  • Resistance - 5 ? to 4000 ?, ≤ 0.01 ? to 0.1 ?, 0.015 %
  • Frequency - 2.0 to 1,000 CPM, 0.1 CPM, ± 0.05 %, For frequency source; 1 V to 20 V p-p
  • Loop Supply - 24 V dc, N/A, 10 %
  • Thermocouples - J, K, T, E, L, N, U, C, BP, XK, 0.1 ºC, 0.1 ºF, to 0.2 ºC
  • Thermocouples - B, R, S, 1 ºC, 1 ºF, to 1.2 ºC
  • RTDs - Cu 10 Ni 120 (672), 0.1 °C, 0.1 °F, to 1.8 °C

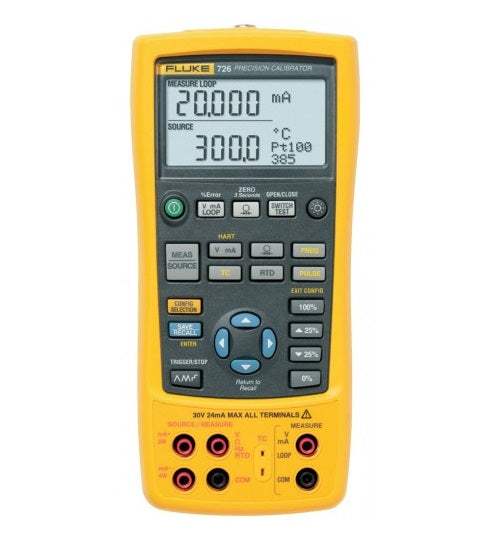

The Fluke 726 Precision Multifunction Process Calibrator is designed specifically for the Process industry with broad workload coverage, calibration power and unsurpassed accuracy in mind. The 726 measures and sources almost all process parameters and can calibrate almost anything. The 726 will also interpret results without the help of a calculator and store measurement data for later analysis.

Model No

726

Condition

New

Manufacturer

Fluke

Fluke 726
