719PRO-300G Fluke Calibrator New

719PRO-300G Fluke Calibrator New

$5,086.99
$5,086.99 $5,086.99
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Electric pump for one handed pressure calibration
  • Best in class pressure measurement uncertainty of 0.025%
  • Measure and source mA with best in class 0.015% accuracy
  • Precision pressure adjust vernier for accurate pressure calibration
  • Variable release rate bleed valve for easy pressure adjustment
  • Programmable pressure calibrator pump limit: eliminates over-pressurization and allows the user to program target pressures for pumping
  • Programmable 3-tiered display for maximum flexibility when displaying pressure, temperature, and electrical parameters of your choice
  • Display backlight
  • Damping, Min/Max, and % error function
  • Source mA with simultaneous pressure measurement to test valves and I/Ps
  • Simulate mA signals to troubleshoot 4-20 mA loops
  • Test pressure switches with built in switch test function
  • Power transmitters during test using 24 V loop supply with simultaneous mA measurement
  • Precision temperature measurement with the addition of an accessory RTD probe (available as an option)
  • Proven cleanout ports reduce pump failures
  • Moisture trap included with the unit helps mitigates risk of moisture damage
View full details
More Details
Specifications

Accessories (Included):

  • Fluke 719PRO-3000G Electric Pressure Calibrator
  • Test leads with alligator clips
  • Printed user's manual and user's manual on CD-ROM in 14 languages
  • Fluid trap
  • Carrying case
  • 1/4 inch NPT to 1/4 inch ISO adapter
  • Accessory hose kit with (2) 1/8 inch quick fit adapters and 1 meter of hose
  • Traceable Certificate of Calibration

Application:

  • Petro-Chemical
  • Oil and Gas
  • Pharmaceutical
  • Water and wastewater
  • Food and Beverage
  • Power Generation

Specifications:

Pressure

  • Range: -12 to 300 PSI / -0.8 to 20 bar
  • Resolution: 0.01 PSI, 0.001 bar
  • Accuracy: ± 0.025 % of full scale, 6 months ± 0.035 % of full scale, 1 year Dry Air and non-corrosive gas only

mA DC (simulation and measurement)

  • Range: 0-24 mA DC
  • Resolution: 0.001 mA
  • Accuracy: ± 0.015 % of reading ± 2 counts
  • Max load in mA source: 1000 ohm
  • Max voltage in mA simulate: 26 V DC

Volts DC (measurement only)

  • Range: 30 V DC
  • Resolution: 0.001 V
  • Accuracy: ± 0.015 % of reading ± 2 counts
  • Notes: No AC voltage measurement, do not exceed 30V DC

Connections

  • Pressure: 1/8 inch female NPT
  • Electrical: Standard banana jacks
  • RTD: 4 pin miniature circular
  • External module: 6 pin miniature circular

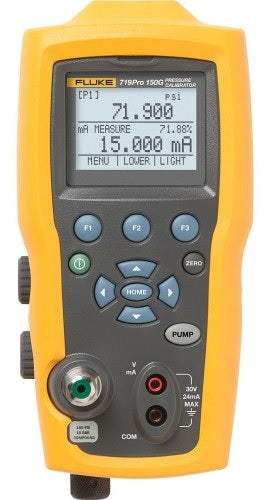

The 719PRO-300G is a calibrator from Fluke. Full functioning loop calibrator that sources, simulates and measures mA signals and more making it the ideal test tool for calibrating high accuracy transmitters, pressure switches and pressure gauges.

Model No

719PRO-300G

Condition

New

Manufacturer

Fluke
