PQ400/B Fluke Accessory New

PQ400/B Fluke Accessory New

$2,146.99
$2,146.99 $2,146.99
In Stock
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
2-3
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features

  • Permanently connected voltage and current sensors located inside the electrical panel allow you to make power quality and energy measurements using the external access points without opening the panel door, reducing operator risk
  • Voltage and current connections for three-phase voltages, neutral and ground cover most measurement scenarios
  • Automatic probe detection for 1740 and 1730 series power quality and energy loggers and compatible clamps, eliminates the need to open cabinet to check the clamp model
  • Full 360° rotation allows the PQ400 window to be oriented in any direction
  • Simple installation using a step drill bit and electro-hydraulic hole punch (114.3 mm, 4.5" diameter)
  • CAT IV, 600 V and CATIII 1000 V rating according to IEC61010-2-30
  • Compatibility with standard 4mm shrouded safety-socket voltage test leads makes it easier to make voltage connections, and increases safety by reducing the risk of accidentally touching live electrical components
View full details
More Details
Specifications

Application

  • Electrical
  • Datacenters
  • Waster water
  • Healthcare
  • Heavily automated plants
  • Semiconductor manufacturing
  • Power utilities
  • Petrochemical

Specifications

Voltage Input

  • Number of inputs: 5 (A/L1, B/L2, C/L3, N, and earth/ground)
  • Wire gauge: Solid/flexible: 0.25 to 1.5 mm2 (AWG 24 to AWG 16)
  • Voltage: Max. 1000 V
  • Fuse: 2 A 1000 V 1.5 A2s, 10 kA IR (A/L1, B/L2, C/L3, N)

Voltage Output

  • Connectors: 5 x 4 mm safety terminals, 3x red for A/L1, B/L2, C/L3, 1 x black for N, 1x green for earth/ground. Load current: Max. 1 A rms
  • Current: Connectors: 5 x 4-pin circular compatible with Fluke 354x FC, 173x, and 174x power and energy loggers (these loggers can all be powered from the measured voltage up to 500 V)

General Specifications

  • Maximum Voltage Between any Voltage Terminal and Earth Ground: 1000 V
  • Maximum Voltage Between any Current Terminal and Earth Ground: 30 V
  • Safety: General: IEC 61010-1: pollution degree 2
  • Measurement: IEC 61010-2-030: CAT IV 600 V/CAT III 1000 V
  • Supported Electrical Enclosures: Enclosure: UL 50/NEMA environmental type 1 (Type 12 when PQ400 cover is closed) Panel thickness: Max. 3.5 mm (10 gauge)
  • Operating/Storage Temperature: -13 to 140°F (-25 to 60°C)
  • Rating: IEC 60529: IP67 with cover closed, IP50 with cover opened and all connectors attached
  • Vibration: IEC 60068-2-6 , MIL-PRF28800F: Random vibration class 2
  • Dimensions: Outside: 5.8 x 7.36 x 0.9" (148 x 187 x 23 mm [148 x 370 x 19 mm with cover opened]) Inside: 5.51 x 6.22 x 2.28" (140 x 158 x 58 mm)
  • Weight: 4.6 lbs (2.1 kg)

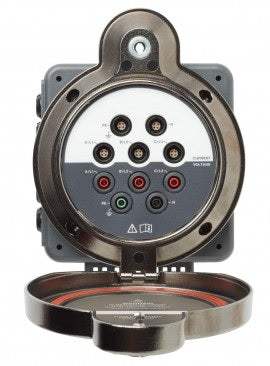

The PQ400/B is a power quality window from Fluke. Featuring a power quality window that enables the connection of three-phase measurement equipment to energized panels, without the need to open the panel door or wear supplemental personal protective equipment (PPE). It has a safety rating of CAT IV, 600V and CAT III 1000 V rating according to IEC61010-2-30.

Model No

PQ400/B

Condition

New

Manufacturer

Fluke
