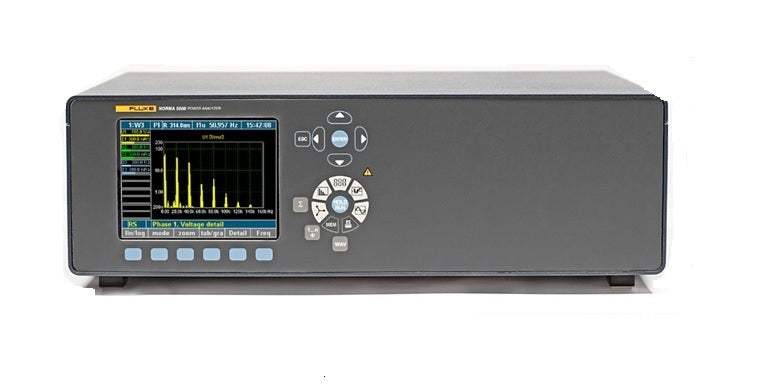

N5K 6PP54IPR Fluke Power Analyzer New

N5K 6PP54IPR Fluke Power Analyzer New

$50,287.99
$50,287.99 $50,287.99
In Stock
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
2-3
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Simple user interface ensures easy, intuitive operation
  • Standard configurations allow users to specify the exact functionality required for their own unique application
  • Accurately display dynamic events on all phases at exactly the same point in time with simultaneous parallel acquisition of all phases
  • All inputs are galvanically isolated to avoid short circuits in all applications
  • Voltage, current and power harmonics up to the 40th
  • FFT analysis, vector diagram display, recorder function and Digital Oscilloscope (DSO) mode included
  • User-selectable average time (from 15ms up to 3600s) for dynamic measurements
  • 4 MB on-board memory for storage of measured values
  • RS232 and USB available as standard; optional IEEE 488/Ethernet available
  • Optional process interface available to measure torque and speed with external sensors; includes four analog outputs for easy use on motor and drive applications
  • 341 kHz or 1MHz sample rates for detailed signal analysis
  • Bandwidth from dc to 3MHz/10MHz for reliable measurement precision
  • Includes Fluke NormaView PC software for setup, data download, analysis & report writing
View full details
More Details
Specifications
Datasheets

Accessories (included):

  • Norma 5000 Three phase Power Analyzer
  • 6 x PP54 power phase input modules
  • Printer
  • Power supply cable
  • Fluke NormaView PC software
  • Colour user's manual
  • Test certificate
  • Calibration values

Applications:

  • Motors
  • Inverters
  • Lighting
  • Power supplies
  • Transformers
  • Making Automotive components more efficient

Specifications:

  • Channel: PP54
  • Accuracy: 0.1% (0.05% rg + 0.05% rg)
  • Current Range: 10A
  • Sampling Rate: 341 MHz
  • Bandwidth: 3 MHz

Provides highly accurate and reliable measurements for both the testing and the development of power electronics. These high precision power analyzers are compact enough to easily carry and save working space. Includes six PP54 Power Phase Input Modules, an IEEE488/Ethernet interface, analog/digital output channels, and a printer.

Model No

N5K

Condition

New

Manufacturer

Fluke

Fluke_N4K_N5K_DataSheet
