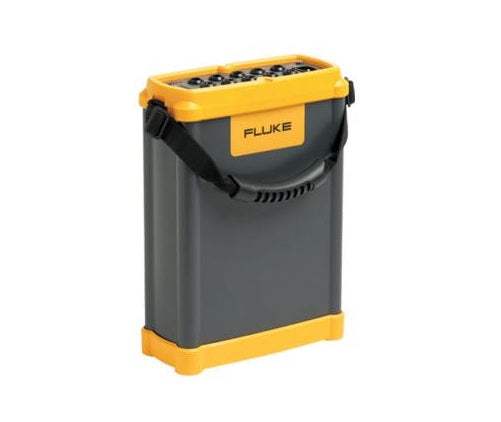

1750/ET Fluke Power Analyzer New

1750/ET Fluke Power Analyzer New

$17,211.99
$17,211.99 $17,211.99
In Stock
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
2-3
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Three-phase power quality recorder with an Android tablet wireless front panel interface
  • Complies with IEC 61000-4-30 Class-A standards for correct evaluation of all measured values
  • Supports quick and reliable configuration even in awkward test locations with the wireless interface that provides a window into what the instrument is recording
View full details
More Details
Specifications
Datasheets

Applications:

  • Long-term analysis: Uncover hard-to-find or intermittent issues; monitor critical equipment, capturing power quality events to correlate with equipment malfunction
  • Power quality surveys: Quantify power quality throughout a facility, documenting results with professional reports
  • Quality of service compliance: Validate incoming power quality at the service entrance
  • Equipment Installation/Commissioning: Benchmark: power system prior to install to insure quality of service
  • Long-Term Analysis – Uncover hard-to-find or intermittent issues.
  • Load Studies – Verify the available electrical system capacity before adding loads.

Specifications:

  • Power quality measurement standards - Conformance, IEC 61999-1-4 Class 1, IEC 61000-4-30 Class A, S or B depending on measurement function, IEEE519, IEEE1159, IEEE1459 and EN50160
  • Clock/calendar - Leap years, 24-hour clock
  • Real-time clock accuracy - Not more than ±1 s/day
  • Internal memory capacity for data - At least 2 GB
  • Maximum recording period - At least 31 days
  • Measurement time control - Automatic
  • Maximum number of events - Limited only by the size of the internal memory
  • Power requirements - 100 to 240 V rms ±10%, 47-63 Hz, 40 W
  • Operating time during interruptions (internal UPS operation) - 5 minutes per interruption, 60 minutes total operating time without recharging
  • Dimensions - 215 x 310 x 35 mm (8.5 x 12.2 x 3.5 in)

The Fluke 1750/ET is a power analyzer. Setting up a power quality analyzer to capture detailed power quality data has never been easier that it is with the Fluke 1750/ET. The only things you need to know are the system voltage, frequency and the power configuration (delta or wye). The analyzer then captures the most important data for up to 30 days without losing the most important details. These power meters automatically record every power quality parameter and event, on every cycle – all the time. Once the data is captured download via Ethernet or directly to 2GB SD card (without the need of any other device). The Fluke 1750/ET features a wireless front panel for viewing measurements, data and setting up, implemented via a tablet computer using Bluetooth communication.

Model No

1750/ET

Condition

New

Manufacturer

Fluke
