• 380926-NIST Extech Clamp Meter
1 1
New
Earn Loyalty with Rewards
Compare

380926-NIST Extech Clamp Meter New

380926-NIST Extech Clamp Meter New

$370.61
$370.61 $415.99
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • AC/DC Current via clamp with 0.1A resolution
  • Large jaw size for high Current measurements
  • Duty Cycle function
  • Large Backlit display
  • Push button Zero adjust improves DC accuracy
View full details
More Details
Specifications
Datasheets

Accessories:

  • 480172 - AC Line Splitter

Specifications:

  • True RMS: Yes
  • Display counts: 5000 count LCD (backlit)
  • Jaw size/Cable size: 2" (50mm); 750MCM
  • AC Current: 400.0A, 2000A (Clamp); 400µA (DMM)
  • DC Current: 400.0A, 2000A (Clamp); 400µA (DMM)
  • Max resolution: 0.1A (Clamp); 0.1µA (DMM)
  • Basic ACA Accuracy (% rdg): ±2%
  • AC Voltage (Max Res.): 1000V (1mV)
  • DC Voltage (Max Res.): 1000V (0.1mV)
  • Resistance (Max Res.): 40MΩ (0.1Ω)
  • Capacitance (Max Res.): 50µF (10pF)
  • Frequency (Max Res.): 100kHz (0.001Hz)
  • Diode/Continuity: Yes
  • Dimensions/ Weight: 10x2.9x1.5" (255x73x38mm)/ 14oz (380g)

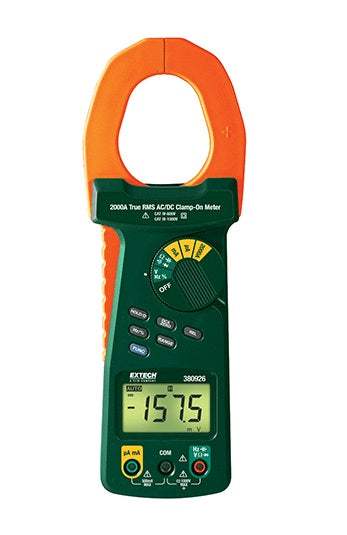

The 380926-NIST is a category IV, 2000-Amp, TRMS AC/DC Clamp Meter which has a rugged 2 in. jaw that accommodates two 500MCM cables. A built-in full-function DMM can measure AC/DC Voltage and Current, Resistance, capacitance, frequency, Duty Cycle, Diode and Continuity. Measurements are displayed on the large 4000 count backlit display for easy viewing in dimly lit areas. Additional features include DCA push button zero, Data Hold, and Relative function. Complete with test leads and 9V battery.

Model No

380926-NIST

Condition

New

Manufacturer

Extech

Amps

2 kA

Volts

1 kV

Extech 380926 TL805 CA899
