• DAS220-BAT BK Precision Recorder
1 1
New
Earn Loyalty with Rewards
Compare

DAS220-BAT B&K Precision Recorder New

DAS220-BAT B&K Precision Recorder New

$2,530
$2,530 $2,530
In Stock
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
2-3
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • 2 Year Warranty
  • Compact and portable form factor suitable for remote and field use
  • Extended battery life of up to 15 hours
  • Wide 10” touchscreen TFT display
  • 20 universal analog input channels, expandable to 200 channels
  • Versatile temperature measurements supporting 9 types of thermocouples and 2 or 3-wire Pt100 / Pt1000 temperature sensors
  • Measure voltage to ±100 V, resistance to 10 kOhm and current (with optional shunt input-terminal block)
  • 32 GB internal solid state memory
  • 2 USB Host ports and 1 LAN interface
View full details
More Details
Specifications
Datasheets

Accessories:

  • 100 / 240 V AC Adapter
  • Manual (CD-ROM)
  • 25 Pin Male Connector and Backshell
  • 10 Input Connectors
  • Shoulder Strap
  • Stylus
  • Soft Wipe
  • Screwdriver

Applications:

  • Temperature logging with thermocouples and platinum resistance temperature sensors
  • Voltage measurements down to ± 0.5 mV range
  • 4-20 mA current loop measurements
  • Frequency, pulse totalization and pulse rotation measurements, which can be expressed in RPM (rotations per minute)

Specifications:

  • Analog Input Channels - 10 integrated channels
  • Maximum input Voltage - 100 V DC
  • Accuracy - 0.1% of the full scale ±10 µV
  • Current - 1 mA (Pt100), 100 µA (Pt1000)
  • Range - -200 °C to 850 °C
  • Measurements - 2 and 3 wires
  • Accuracy (at 20 °C) - 0.3 °C ±0.1% of reading

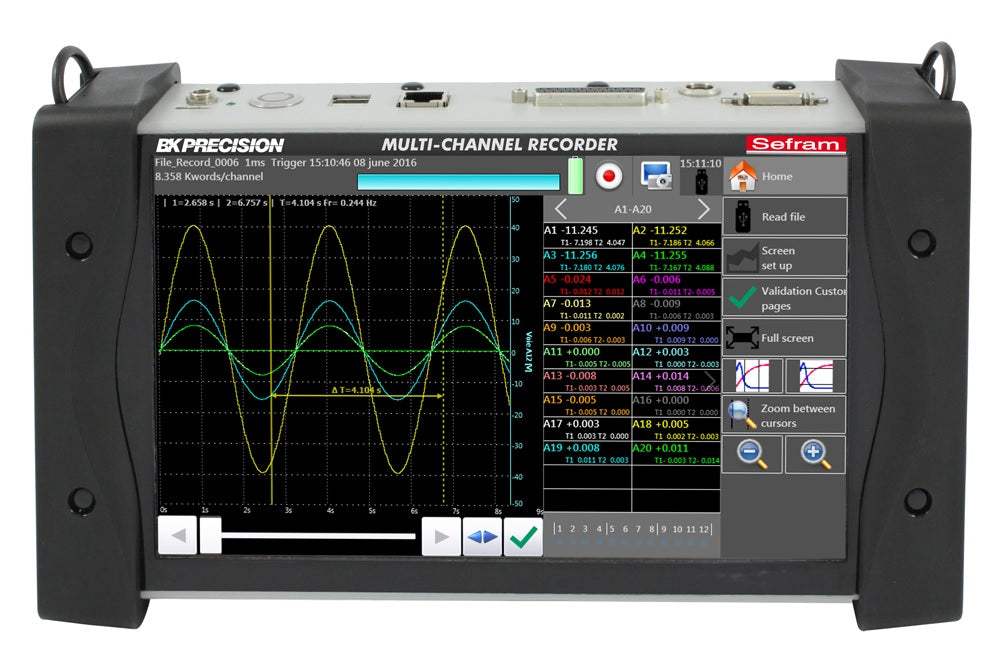

The DAS220-BAT measures parameters commonly found in process applications including voltage, temperature, current, resistance, frequency and pulse. It includes 20 universal analog channels with convenient screw input terminals that can be expanded up to 200 channels. This recorder was developed by B&K Precision’s subsidiary Sefram in France, which specializes in the design and manufacture of data acquisition instruments, field strength meters, and other test and measurement instruments.

Model No

DAS220-BAT

Condition

New

Manufacturer

B&K Precision

BK_Precision_DAS220-BAT
