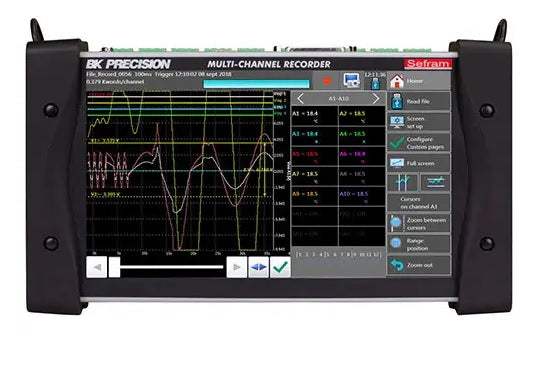

DAS220 B&K Precision Recorder New

$2,310

$2,310 ~~$2,310~~

In Stock

Shipping calculated at checkout.

Product variants

Estimated Delivery in

2-3

business days

Features:

Portable 10-Channel Data Recorder without battery
Wide 10-inch touchscreen TFT display
10 built-in universal analog inputs
Versatile temperature measurements supporting thermocouples and Pt100 / Pt1000 temperature sensors
Measure voltage to ± 100V, resistance to 10 kOhm and current (with optional shunt)
16-bit vertical resolution
32 GB internal solid state memory
12 logic input/output channels
4 timing logic input channels for pulse count, frequency and PWM measurements
Free DasLab operating software
WiFi monitoring and control (standard USB WiFi dongle required)

View full details

More Details

Specifications

Datasheets

The DAS220 measures parameters commonly found in process applications including voltage, temperature, current, resistance, frequency and pulse. It includes 10 built-in universal analog channels with convenient screw input terminals for portability. This recorder was developed by B&K Precision’s subsidiary Sefram in France, which specializes in the design and manufacture of data acquisition instruments, field strength meters, and other test and measurement instruments.

Measurement results can be viewed graphically and numerically on the 10-inch color touch screen and saved to internal solid-state memory or an external USB memory stick. Icon-driven menus make the instrument easy to navigate. The free DasLab Windows PC software allows users to remotely control and configure the recorder, transfer logging results and configuration files, and view live data in graphical or numerical format on the PC.

Model No

DAS220

Condition

New

Manufacturer

B&K Precision

BK_Precision_DAS220-BAT
