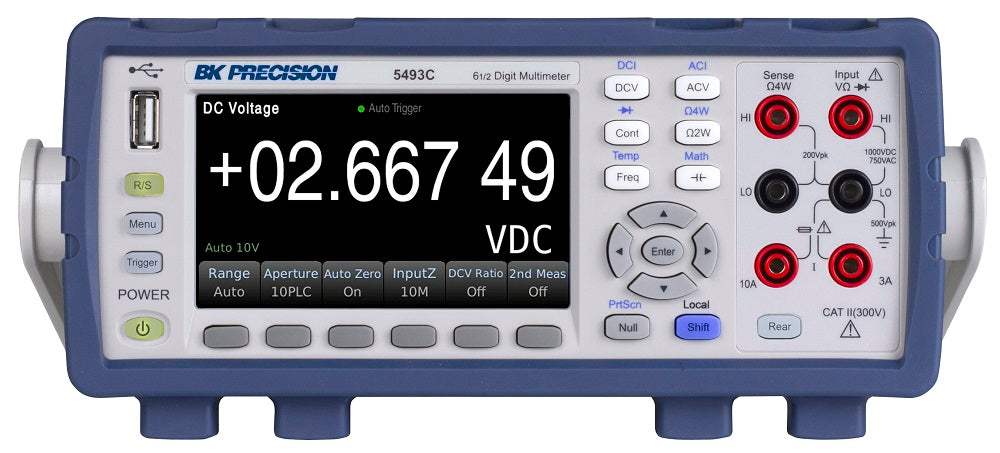

5493C B&K Precision Multimeter New

5493C B&K Precision Multimeter New

$1,115
$1,115 $1,115
In Stock
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
2-3
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • 5493C 6½ Digit Digital Multimeter
  • 12 measurement functions: DCV, ACV, DCI, ACI, 2 and 4-wire resistance, capacitance, frequency, diode, temperature, continuity test, DCV Ratio
  • High-contrast 4.3-inch full color LCD
  • Histogram, bar meter, and trend chart offer a variety of data analysis options
  • Accurate frequency measurements to 1 MHz
  • Display Min, Max, Peak-Peak, Average, Standard Deviation statistics simultaneously
  • Null, dB, dB, %, mx+b, and run/stop math functions
  • Internal storage buffer holds 10,000 readings
  • Measurement speed up to 1000 readings/s
  • 35 ppm basic DC voltage accuracy
  • 2-wire and 4-wire resistance measurements down to 10 Ω
  • Dual measurement display
  • Temperature measurement capability using a Pt100 or 5 kΩ thermistor probe
  • Rack mount kit option (RK02)
  • Rear input terminals for rack use (6½-digit model only)
  • Standard USB (USBTMC-compliant), RS232, and LAN interfaces, GPIB is an available option
  • Real-time clock/calendar to set/read time and date
View full details
More Details
Specifications
Datasheets

The BK Precision 5493C 6½-digit bench multimeters are designed for accuracy, repeatability and ease-of-use. A wide measurement range with speeds up to 1000 readings per second, and a basic DCV accuracy up to 35 ppm deliver stable measurement results quickly and accurately. These general purpose meters are well suited for demanding engineering, production and service applications.

The multimeters feature simple and intuitive switching between the 12 measurement functions and display modes for a variety of test setups. Display modes include bar meter, trend chart, and histogram which can be combined with statistics or math functions. The dual measurement feature enables the simultaneous display of 2 measurements, e.g. AC voltage and frequency. Additionally, Limit mode and Probe hold mode allow users to conveniently verify and compare readings.

For remote communication, this series includes standard LAN, USB (USBTMC-compliant) and RS232 interfaces, as well as a GPIB option. A LabVIEWTM driver is provided to simplify system integration and instrument control.

The front panel USB host port can be used for transferring screen captures and measurement data, logged with date and time stamp, from the multimeter's internal memory to a computer.

The provided operating software supports remote instrument control, live measurement monitoring, and data logging.

Model No

5493C

Condition

New

Manufacturer

B&K Precision

Ac voltage

1 kV

Dc voltage

750 V

Resolution

6.5

Type

Bench
