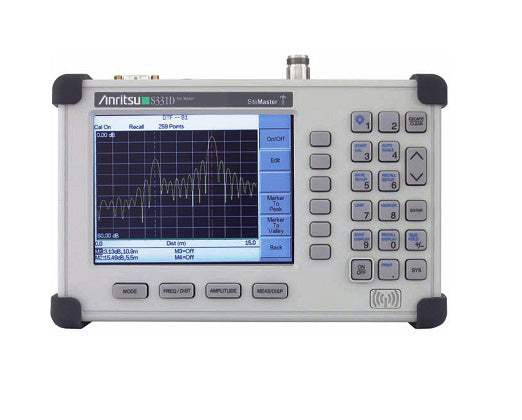

S331D Anritsu Cable and Antenna Analyzer Used

S331D Anritsu Cable and Antenna Analyzer Used

Shipping calculated at checkout.
Calibrations
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Additional Features:

  • Handheld, battery-operated design
  • Weighs less than 5 lbs. (including battery)
  • Built-in worldwide signal standards and frequency channels
  • TFT color daylight viewable color display
  • Superior Immunity to RF interference
  • Locate long range problems with 517 data points
  • Variety of Power Measurement solutions
  • Built-in and editable Signal Standard and Cable Standard lists
  • Multilingual User Interface; English, French, Chinese, Japanese, Spanish, German
  • Intuitive and easy to use with On-Screen Test Set-Ups
  • Saves 10 to 30 Measurement Test Set-Ups (10 VNA, 5 T1, 5 E1, Power Meter, 5 High Accuracy Power Meter)
  • Saves up to 300 Measurement Traces
  • Alphanumeric Labeling of Saved Measurements
  • Automatic Time and Date Stamp of Saved Data
  • Rechargeable, Field Replaceable Battery
  • Distance Measurement in Feet and Meters
  • Information Screens Provide Cable Attenuation and Velocity of Propagation values
  • 6 Markers, Limit Lines, and Segmented Limit Lines
  • RS232 Interface
Share on
View full details
More Details
Specifications
Options
Datasheets
Manuals

Applications:

  • Cable and antenna testing for VHF, broadcasting, paging, cellular, PCS/GSM, 3G, ISM, WLAN and WLL applications
  • Return Loss measurement
  • Distance-To-Fault measurement
  • Cable loss measurement
  • Channel power

The Anritsu S331D measurement capability includes precision Return Loss/SWR, Cable Loss and optional T1/E1 and power meter measurements. Frequency Domain Reflectometry (FDR) provides superior Distance to Fault (DTF) analysis to locate faults accurately. Patented RF interference rejection enables accurate, repeatable measurements in the presence of high RF activity. Data analysis software enables assessment of system trends, problems, and performance in addition to professional report generation.

Model No

S331D

Condition

Used

Manufacturer

Anritsu

Frequency

Frequency

29

RF Power Meter (requires no detector)

3

Color Display

760-229

Transit Case

Anritsu_S100C_S200C_S300D_S800C_Series
Anritsu_S331D_User_Guide
Anritsu_S331D_S332D_Programming_Manual
