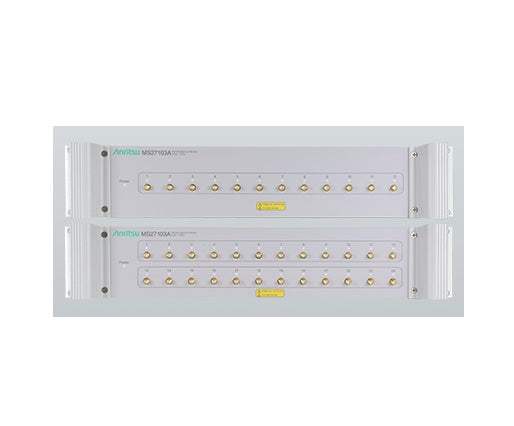

The Anritsu MS27103A is a remote spectrum monitor built for remote RF signal monitoring across a 9 kHz to 6 GHz frequency range (tunable to 0 Hz). It ships as a standard configuration with 12 RF input ports, with 24 RF input ports available via Option 424. A high-speed switch inside the monitor provides measurement capability for each RF input, and greater than 30 dB of isolation is provided between each RF input port to assure the integrity of the measurement.
The MS27103A is typically used with three- or six-sector BTS architectures, with multiple carriers per sector. Its measurement set covers occupied bandwidth and channel power, and its interference-analysis capabilities include spectrogram and signal strength. IQ block mode and streaming with time stamping support time difference of arrival (TDOA) applications, and the integrated GPS receiver supports monitoring location and time-synchronization applications.
ValueTronics stocks and holds its own inventory in a 20,000 sq ft secure warehouse at 1675 Cambridge Drive in Elgin, Illinois. Every pre-owned unit is inspected and functionally verified in-house before it ships, while new units ship factory-sealed exactly as received from the manufacturer. Holding inventory directly in our own facility lets us manage condition, configuration, and fulfillment under one roof.
| Specification | Value |
|---|---|
| Frequency | |
| Frequency Range | 9 kHz to 6 GHz (tunable to 0 Hz) |
| Tuning Resolution | 1 Hz |
| Frequency Reference Accuracy | ±1.5 ppm (25 °C ± 25 °C) ±1.0 ppm/year aging; < ±50 ppb with GPS on |
| Frequency Span | 10 Hz to 6 GHz |
| Sweep Speed, Typical (full span FFT mode), 10 kHz RBW | 5 GHz/s |
| Sweep Speed, Typical (full span FFT mode), 30 kHz RBW | 12 GHz/s |
| Sweep Speed, Typical (full span FFT mode), 3 MHz RBW | 24 GHz/s |
| Bandwidth | |
| Resolution Bandwidth (RBW) | 10 Hz to 3 MHz in 1–3 sequence (–3 dB bandwidth) |
| Video Bandwidth (VBW) | 10 Hz to 3 MHz in 1–3 sequence (–3 dB bandwidth) (auto or manually selectable) |
| Spectral Purity | |
| SSB Phase Noise @ 1 GHz, 10 kHz offset | (–98 dBc/Hz) |
| SSB Phase Noise @ 1 GHz, 100 kHz offset | (–98 dBc/Hz) |
| Amplitude Ranges | |
| Dynamic Range | (> 106 dB) (2.4 GHz), 2/3 (TOI-DANL) in 1 Hz RBW |
| Measurement Range | DANL to Maximum Continuous Input |
| Reference Level Range | –150 dBm to +30 dBm |
| Attenuator Range | 0 dB to 50 dB in 5 dB steps |
| Amplitude Units | Log Scale Modes: dBm, dBµV |
| Displayed Average Noise Level (DANL), RBW normalized to 1 Hz, 0 dB attenuation (Port 1 specified; other ports typical, within 1 dB) | |
| 10 MHz to 3.3 GHz (Preamp Off, Ref Level –20 dBm) | Port 1: –140 dBm; Typical: –145 dBm |
| > 3.3 GHz to 4.1 GHz (Preamp Off, Ref Level –20 dBm) | Port 1: –133 dBm; Typical: –138 dBm |
| > 4.1 GHz to 5 GHz (Preamp Off, Ref Level –20 dBm) | Port 1: –130 dBm; Typical: –135 dBm |
| > 5 GHz to 6 GHz (Preamp Off, Ref Level –20 dBm) | Port 1: –115 dBm; Typical: –123 dBm |
| 10 MHz to 3.3 GHz (Preamp On, Ref Level –50 dBm) | Port 1: –157 dBm; Typical: –160 dBm |
| > 3.3 GHz to 4.1 GHz (Preamp On, Ref Level –50 dBm) | Port 1: –152 dBm; Typical: –155 dBm |
| > 4.1 GHz to 5 GHz (Preamp On, Ref Level –50 dBm) | Port 1: –148 dBm; Typical: –152 dBm |
| > 5 GHz to 6 GHz (Preamp On, Ref Level –50 dBm) | Port 1: –133 dBm; Typical: –141 dBm |
| Spurs, Typical | |
| Residual Spurious (RF input terminated, 0 dB attenuation, preamp off), 10 MHz to 4.5 GHz | (< –80 dBm) |
| Residual Spurious (preamp off), > 4.5 GHz to 6.0 GHz | (< –70 dBm) |
| Residual Spurious (preamp on), 10 MHz to 5.0 GHz | (< –95 dBm) |
| Residual Spurious (preamp on), 16 MHz to 18 MHz | (< –88 dBm) |
| Residual Spurious (preamp on), > 5.0 GHz to 6.0 GHz | (< –85 dBm) |
| Input-Related Spurious | < –60 dBc, 0 dB attenuation, –30 dBm input, carrier offset > 5 MHz |
| Second Harmonic Distortion (Typical; 0 dB attenuation, –30 dBm input), 50 MHz | (–50 dBc) |
| Second Harmonic Distortion, > 50 MHz to 200 MHz | < –60 dBc |
| Second Harmonic Distortion, > 200 MHz to 3000 MHz | < –60 dBc |
| Third-Order Intercept (TOI) (Typical; preamp off, –20 dBm tones 100 kHz apart, 0 dB attenuation, ref level –20 dBm), 800 MHz | (+7 dBm) |
| TOI, 2400 MHz | (+17 dBm) |
| TOI, 200 to 2200 MHz | +10 dBm |
| TOI, > 2.2 GHz to 5.0 GHz | +8 dBm |
| TOI, > 5.0 GHz to 6.0 GHz | +14 dBm |
| Maximum Continuous Input | |
| 100 MHz to 6 GHz, ≥ 10 dB attenuation | +22 dBm, ±50 VDC (for lower frequencies, derate max continuous input by 4 dB per decade) |
| 300 kHz to 6 GHz, < 10 dB attenuation | +10 dBm, ±50 VDC |
| 9 kHz to 6 GHz, preamp on | –10 dBm, ±50 VDC |
| Amplitude Accuracy, Option 424 (24 Ports), k = 2 | |
| Port 1, 9 kHz to 5 GHz | ±2.5 dB |
| Port 1, > 5 GHz to 6 GHz | ±3.0 dB |
| Ports 2 to 12 (typical), 9 kHz to 5 GHz | ±3.0 dB |
| Ports 2 to 12 (typical), > 5 GHz to 6 GHz | ±3.5 dB |
| Ports 13 to 24 (typical), 9 kHz to 5 GHz | ±3.0 dB |
| Ports 13 to 24 (typical), > 5 GHz to 6 GHz | ±3.5 dB |
| Input | |
| VSWR | < 2.5:1 typical |
| Signal Processing | |
| Data Types | I/Q time series: 8, 10, 16 or 24 bit resolution; Spectrum trace: 100 to 4000 points |
| Data Transfer Modes | I/Q time series or spectrum trace in streaming or block mode |
| I/Q Data Streaming Rate | Gapless on 100Base-T network, up to 2.6 MHz signal bandwidth |
| I/Q Data Time Stamp Resolution | 8.7 ns |
| Antenna Port Isolation (Typical), ≤ 3 GHz | > 40 dB |
| Antenna Port Isolation (Typical), > 3 GHz | > 30 dB |
| General Specifications | |
| Internal Trace/Setup Memory | 4 GB internal memory available for storing files |
| RF In | 12 SMA(f) ports, 50 Ω (24 SMA(f) ports, 50 Ω optional) |
| External Power | 11 W, ±20 VDC to ±70 VDC (110/220 VAC optional) |
| Ethernet | One RJ45 connector for Gbit LAN, 2nd port optional for daisy chain |
| USB | Two USB Type A connectors |
| External Reference In | 10 MHz, +10 dBm max, +5 VDC max, BNC(f) |
| GPS | SMA(f) |
| Environmental | MIL-PRF-28800F Class 3 |
| Operating Temperature Range | 0 °C to 50 °C |
| Storage Temperature Range | –40 °C to 71 °C |
| Maximum Relative Humidity | 95 % RH at 30 °C, non-condensing |
| Vibration, Sinusoidal | 5 Hz to 55 Hz |
| Vibration, Random | 10 Hz to 500 Hz |
| Half Sine Shock | 30 gn |
| Altitude | 4600 meters, operating and non-operating |
| ESD, RF Input Pin | Withstands up to ±4 kV |
| Size | 480 mm x 90 mm x 300 mm (18.9 in x 3.5 in x 11.8 in) |
| Weight, 12-port | 3.9 kg (8.9 lb) |
| Weight, 24-port | 4.5 kg (9.9 lb) |
| Warranty | Standard three-year warranty |
Important: Maximum continuous input: +22 dBm, ±50 VDC (100 MHz to 6 GHz, ≥10 dB attenuation). For lower frequencies, derate maximum continuous input by 4 dB per decade.
Important: The MS27103A requires a frequency option to be ordered; Option 0706 (9 kHz to 6 GHz Frequency Range) must be selected with the base unit.
Important: Option 110 replaces the screw terminal with a 3-pin AC line receptacle.
Important: A GPS antenna (Part Number 2000-1528-R, SMA(m) with 5 m cable, 3 dBi gain, requires 5 VDC) is an optional accessory and is not included with the standard instrument; it is required for the integrated GPS receiver's location and time-synchronization functions.
Important: Vision software and SpectraVision software are optional; automated spectrum measurements, alarms, geo-location, TETRA/Satellite measurements, and channel scanning require the corresponding software options.
This pre-owned unit is inspected and functionally verified in-house before it ships and is backed by our pre-owned warranty. To confirm its exact condition, firmware revision, installed options, or included accessories for your application before ordering, contact our Test Architects.
ValueTronics supplies both new and used test and measurement equipment. New units ship factory-sealed, exactly as received from the manufacturer; every used unit is inspected and functionally verified in-house at our 20,000 sq ft secure facility in Elgin, Illinois before it ships. Our Test Architects can help you select the condition, calibration, and configuration that fit your application.
Please review the Manufacturer's Data Sheet to verify published specifications. Feedback on this webpage is always welcome — please reach out to your Test Architect at any time for questions or concerns. Thank you, we truly appreciate you being our customer.
