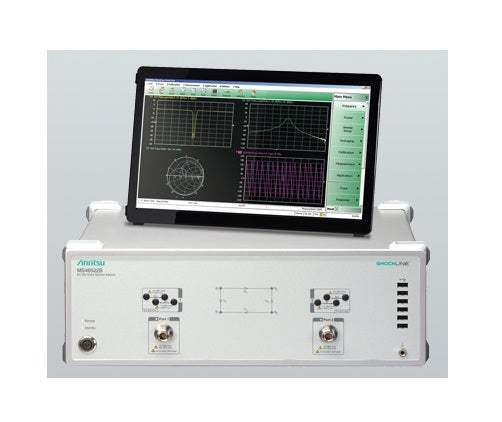

MS46522B Anritsu Network Analyzer Used

MS46522B Anritsu Network Analyzer Used

Shipping calculated at checkout.
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Guaranteed performance to 43.5 GHz with Extended K™ ports
  • High output power allows measurement of high attenuation devices
  • Advanced time domain option provides tools for signal integrity analysis
  • Wide dynamic range enables measurement of very low reflection artifacts
  • Excellent corrected directivity minimizes measurement uncertainty
  • SmartCal™ auto calibration unit reduces calibration and setup time
  • Time domain with time gating option grants easier and faster fault identification
  • Modern LAN interface for remote control is faster than GPIB
  • A common GUI and SCPI interface within the ShockLine family
  • Bias tee option simplifies test setups where the DUT needs DC biasing
  • Universal Fixture Extraction (UFX) software option provides advanced de-embedding tools for test fixture extraction
  • E-Band VNA
  • Extended frequency range covering E-band and major parts of V band
  • Fully assembled test system eliminates setup errors and increases reliability
  • Tethered modules connect directly to the DUT increasing measurement stability
Share on
View full details
More Details
Specifications
Datasheets

Applications:

Mobile

  • UE – micro coaxial RF connectors
  • UE – Antennas, switches, diplexers, UE Front End Modules (FEM)
  • 5G network components

Automotive

  • RF (FAKRA) connectors
  • Driver assistance radar

General Purpose

  • Passive Device Testing
  • Connectors
  • Cables
  • Electromechanical
  • Switches
  • Attenuators
  • Couplers
  • Filters
  • Isolators
  • Circulators
  • Phase shifters
  • Radar connectors
  • Near-field and far-field antenna measurements

System Integration Applications

  • System calibration
  • Path-loss characterization
  • General s-parameter and time domain measurements

Simple Active Applications

  • Amplifier characterization

Wireless Power Transfer Applications

  • KQ product
  • Maximum efficiency

Optical to Electrical, Electrical to Optical, and Optical to Optical Applications

  • Photo receiver
  • Laser modulator
  • Optical transceiver

Specifications:

  • 92 GHz

The ShockLine™ MS46522B is a 2-port performance vector network analyzers. Delivering an unprecedented level of value and performance, this series lowers the cost-of-test and speeds time-to-market in numerous testing applications up to 92 GHz, including: manufacturing and verifying mobile network equipment and devices for 5G mmWave applications; automotive cables; high-speed data interconnects; and system integration components.

Model No

MS46522B

Condition

Used

Manufacturer

Anritsu

Frequency

92 GHz

Anritsu_MS46522B
