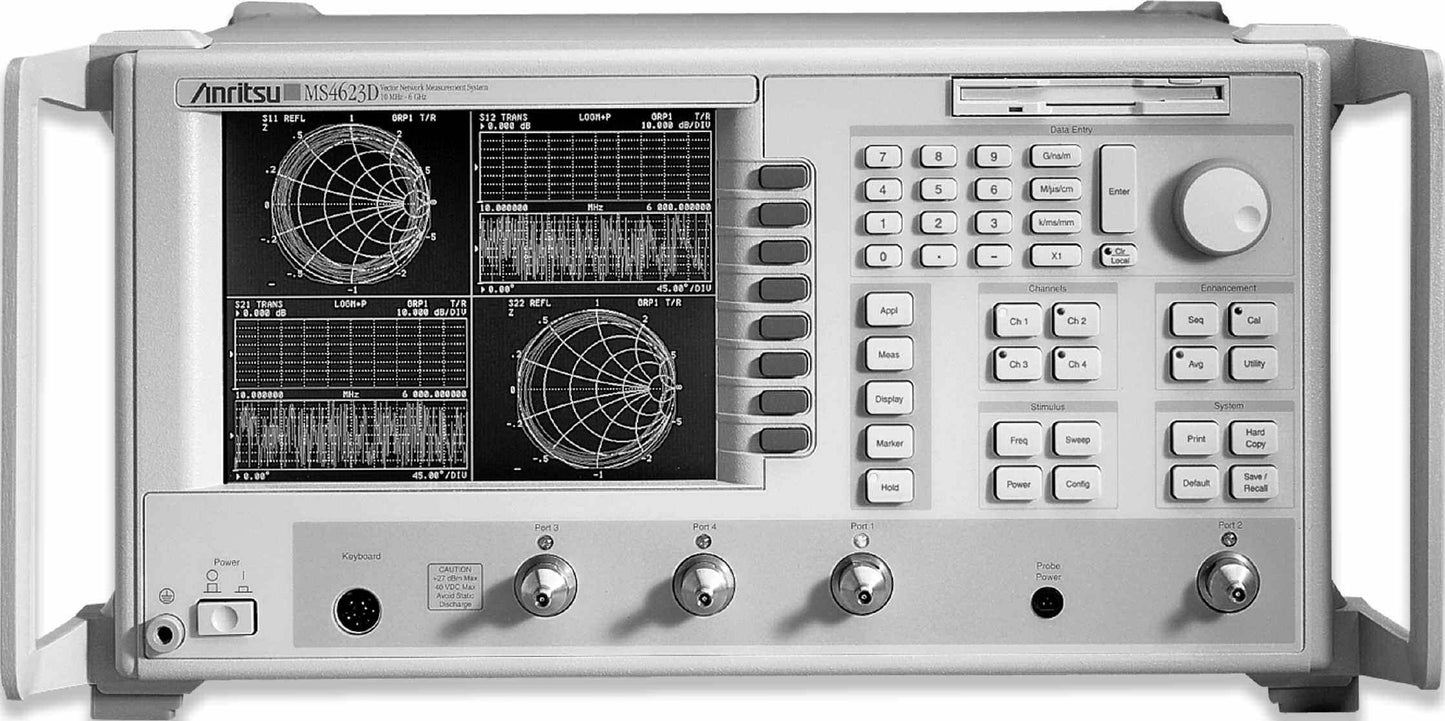

MS4623D Anritsu Network Analyzer Used

MS4623D Anritsu Network Analyzer Used

Shipping calculated at checkout.
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Additional Features:

  • Frequency range: 10 MHz-6 GHz
  • Measurement Speed: 150 μsec/point
  • Dynamic Range: 125 dB
  • Source Power: +10 dBm
  • Receiver Noise as Low as –115 dBm
  • S-Parameter Uncertainty: < 0.05 dB
  • Mixed Mode S-Parameters
  • Embedding/De-embedding
  • Arbitrary Impedance
  • AutoCal® Simplifies 2,3 and 4-Port Calibrations
  • N-type, 3.5 mm, or GPC-7 Connectors
  • Sequences Automate Repetitive Keystrokes
  • Enhanced Markers Simplify Data Collection
  • Overlay Displays to Customize Data Viewing
  • External SCSI Interface for Massive Storage
Share on
View full details
More Details
Specifications
Options
Datasheets

See the True Performance of Your:

  • Antennas, Isolators, Filters, Duplexers, Couplers
  • SAW Filters, Baluns
  • Amplifiers
  • Mixers
  • Power Amplifiers
  • Tower Mount Amplifiers
  • Multiport Components

The foundation of the Scorpion® MS4623D Vector Network Measurement System (VNMS) is a high performance 2-port Sparameter measurement engine consisting of a single flexible source and ultra-linear receiver. This vector network analyzer (VNA) engine provides all the necessary features to thoroughly characterize your RF components versus time, frequency and power.

Model No

MS4623D

Condition

Used

Manufacturer

Anritsu

Frequency

6 GHz

11SF

Replaces N female with 3.5mm female Test Port Adapters

13

Intermodulation Distortion3

2

Time Domain

4G

6 GHz Noise Figure1

5

Frequency Translating Group Delay (FTGD)

8

Harmonic Measurement

98

Z540/Guide 25 Calibration
