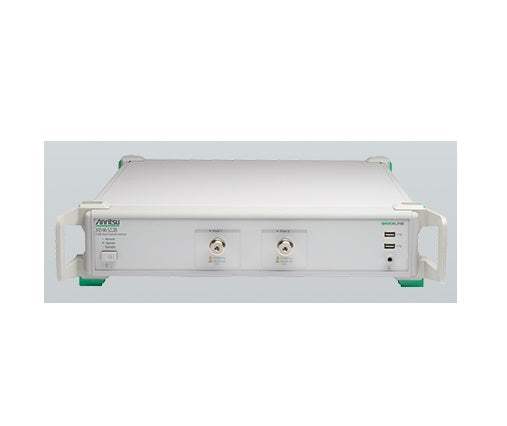

MS46122B Anritsu Network Analyzer Used

MS46122B Anritsu Network Analyzer Used

Shipping calculated at checkout.
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Guaranteed performance to 43.5 GHz with Extended K™ ports
  • Ideal for testing RF and microwave devices, mmWave antennas, and other passive 5G components
  • Fast sweep speed and wide dynamic range minimize test times and maximize throughput
  • Excellent corrected directivity allows for less measurement uncertainty
  • Time domain with time gating option grants easier and faster fault identification
  • Industry-standard LAN interface for remote control is more robust than USB and faster than GPIB
  • Standard removable hard drive provides additional security for military and government research users
  • A common GUI and SCPI interface within the ShockLine family
  • USB ports allow for easy connection to user-provided monitor, keyboard, and mouse
  • Small 2U package makes for efficient use of rack space
  • Universal Fixture Extraction (UFX) software option provides advanced de-embedding tools for test fixture extraction
Share on
View full details
More Details
Specifications
Datasheets

Applications:

RF and Microwave Passive Component Testing and Troubleshooting

  • RF and automotive connectors and cables
  • Electromechanical switches
  • Attenuators
  • Couplers
  • Filters
  • Isolators
  • Circulators
  • Phase Shifters

System Integration Applications

  • System Calibration
  • Path-loss Characterization
  • General s-parameters and time domain measurements

Wireless Power Transfer Applications

  • KQ product
  • Maximum efficiency

Specifications:

  • 43.5 GHz

The ShockLine™ MS46122B is an economy vector network analyzers (VNAs) with frequency ranges from 1 MHz to 8/20/43.5 GHz. The series is based on Anritsu’s patented shockline VNA-on-chip technology, which simplifies the internal VNA architecture at high frequencies, reduces instrument cost, and enhances accuracy and measurement repeatability.

Model No

MS46122B

Condition

Used

Manufacturer

Anritsu

Frequency

43.5 GHz
