• ACD-14 TRMS-PLUS Amprobe Clamp Meter
1 1
New
Earn Loyalty with Rewards
Compare

ACD-14 TRMS-PLUS Amprobe Clamp Meter New

ACD-14 TRMS-PLUS Amprobe Clamp Meter New

$305.99
$305.99 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features

  • Dual displays – permits simultaneous reading of amperage and voltage
  • True-rms for precise measurement results
  • New thin jaws, 5mm thinner than others to access tight measurement spaces
  • Micro Amps measurement for testing flame sensors
  • Capacitance to 3000 µF
  • Temperature with K-type thermocouple probe
  • AC and DC Voltage to 600V
  • Resistance to 40M?
  • AC Current to 600A
  • Frequency measurement
  • Diode test and continuity buzzer
  • Hold and maximum reading functions
  • In rush current
  • Accommodates conductors up to 28 mm (1.1) in diameter
  • Auto ranging
  • Auto power off and low battery indication
  • Rubber over-molded case
View full details
More Details
Specifications
Datasheets

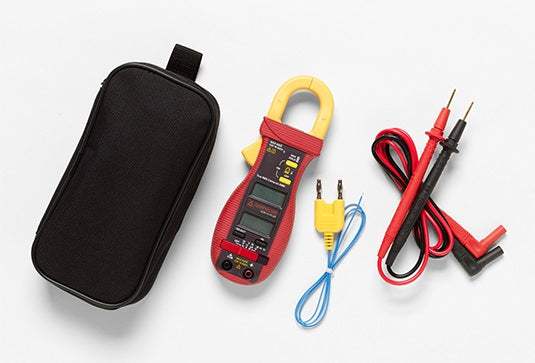

Accessories (Included)

  • Test leads
  • Battery (installed)
  • Soft carrying pouch
  • Type-K thermocouple with banana plug

Specifications

  • True-rms: Yes
  • AC Voltage: 4.000 V, 40.00 V, 400.0 V, 600 V
  • DC Voltage: 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V
  • AC Current: 40.00 A, 400.0 A, 600 A
  • Resistance: 400.0 O, 4.000 kO, 40.00 kO, 400.0 kO, 4.000 MO, 40.00 MO
  • Capacitance: 500.0 nF, 5.000 µF, 50.00 µF, 500.0 µF, 3000 µF
  • Frequency: 40 Hz → 400 Hz with Jaw, 10 Hz → 100 kHz with test leads
  • Temperature: -4 °F → 999 °F (-20 °C → 537 °C)
  • Dual displays: Yes
  • Micro Amps: Yes
  • Accommodates conductors up to 1.0″ (25 mm) in diameter

The Amprobe ACD-14 TRMS-PLUS Digital Clamp Multimeter is the perfect choice for HVAC and electrical applications due to its versatile set of features which includes microamps, temperature with thermocouple, capacitance, frequency and true-rms accuracy. This digital clamp multimeter provides added functionality with a dual display for views of amperage and voltage simultaneously.

Model No

ACD-14

Condition

New

Manufacturer

Amprobe

Amps

600 A

Volts

600 V

Amprobe ACD-14 TRMS PLUS Datasheet
