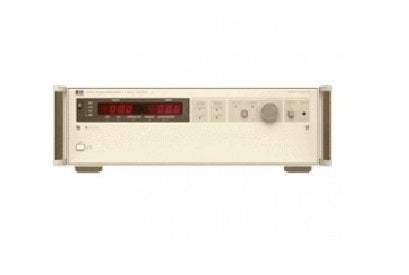

The Agilent HP 6034A DC Power Supply has a combination of features and specifications that characterize it as a comprehensive solution to HPIB system power supply applications. The Agilent HP 6034A combines FET switching technology with an internal microprocessor based HPIB programmer to yield an excellent bidirectional programmable autoranging DC power supply.
The Agilent HP 6034A is part of the 603x family of power supplies which provide a wide and continuous range of output voltage and current levels at the rated power output. They provide great flexibility for applications with varied or changing needs.
The single-output, autoranging 200 W, GPIB 6034A provides analog/resistance control of output voltage and current; series and auto-parallel connections of multiple supplies; and built-in measurements and advanced programmable features. The Agilent 200 W, single-output 6034A is an efficient solution for large demanding test systems that saves rack space and reduces system complexity.
This series of 200 watt and 1000 watt DC power supplies take the place of multiple power supplies in your test system by providing maximum power at a variety of operating points.
Industry standard SCPI commands and VXIPlug&Play drivers make system integration easy. Using the serial link, up to 16 power supplies can be connected through one GPIB address. These power supplies have excellent electrical efficiency, making them a good choice for large systems.
Model No
6034A
Condition
Used
Manufacturer
Agilent
Current
10 A
Voltage
60 V
Power
200 W
120
DC power supply 104-127VAC operation , 50/60Hz
220
191 to 233 VAC , 48 to 63 Hz
6030A-001
Blank front panel
908
Rackmount Ears
