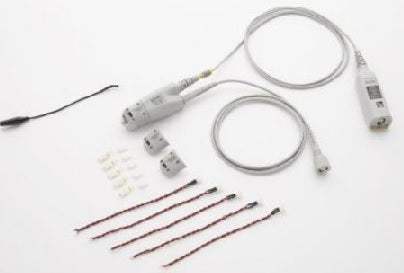

N2820A Agilent Current Probe Used

N2820A Agilent Current Probe Used

Shipping calculated at checkout.
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Minimum current range of 50 µA
  • Maximum current range of 5 A
  • Wide dynamic range of >20,000:1 or 86 dB
  • Bandwidth: 3 MHz - zoom-out channel; 500 kHz - zoom-in channel
  • Ideal for capturing and analyzing low level current flow in the DUT to characterize sub-circuits or measure current consumption of wireless battery-powered devices or integrated circuits
  • Simultaneous high- and low- gain views of the current waveform for more precise wide dynamic range measurement
Share on
View full details
More Details
Specifications
Datasheets

As modern battery-powered devices and integrated circuits become more green and energy efficient, there is a growing need to make high-sensitivity, low-level current measurements to ensure the current consumption of these devices is in acceptable limits. The N2820A high-sensitivity probe is engineered to make high-dynamic-range, high-sensitivity measurements to meet today’s challenging current measurement needs.

The ultra-sensitive N2820A AC/DC current probe can support measurements from 50 uA to 5 A on Keysight oscilloscopes. The N2820A interface uses a make-before-break (MBB) connector, allowing you to quickly probe multiple locations on your DUT without having to solder or unsolder the leads.

Model No

N2820A

Condition

Used

Manufacturer

Agilent

Frequency

3 MHz

AGILEN N2820A
