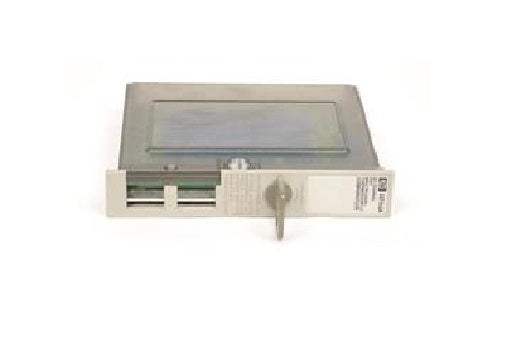

44710A Agilent Data Logger Used

44710A Agilent Data Logger Used

Shipping calculated at checkout.
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • 20 Channel FET Multiplexer with Thermocouple Compensation
  • For the 3852A Data Acquisition/Control Unit
  • Maximum switch rates: 5500 channels/s
  • Maximum input voltage: Rear and backplane inputs protected to 16 Vpeak. Input impedance decreases above 12 V
  • Maximum input current: 1 mA non-inductive per channel
  • Bandwidth: 1.0% flatness at 20 kHz, -3 dB bandwidth at 200 kHz
  • Crosstalk: -50 dB at 10 kHz, -35 dB at 100 kHz
  • Maximum wire size: 16 AWG
  • Reference junction compensation accuracy: 0.1°C
  • Maximum temperature difference across isothermal module: 0.2°C
Share on
View full details
More Details
Specifications

Directly multiplexes:

  • Voltage
  • Resistance
  • Thermocouples
  • Strain gages

The Agilent 44710A FET Multiplexer is used to switch (multiplex) signals from up to 20 channels for measurement by the 3852A voltmeter accessories or by external voltmeters. This accessory is designed to perform high-speed switching of low signal-level devices wit input voltages less than 1024 VDC or 7.24 VACrms  (10.24 Vpeak). The 20 channels can be switched at speeds up to 600 channels per second using a 3852A accessory. The 44710A also has thermocouple compensation for temperature measurements.

The Agilent 44710A FET Multiplexer allows you to: Maximize your measurement throughput and increase your system reliability.

The Agilent 44710A FET has no mechanical limitations (no wear out due to switching). Similar to their relay counterparts, the FET multiplexer has high, low, and guard connections for better common mode rejection than the high-speed FET multiplexers.

Model No

44710A

Condition

Used

Manufacturer

Agilent
