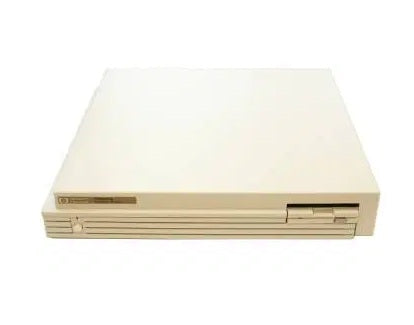

16505A Agilent Logic Analyzer Used

16505A Agilent Logic Analyzer Used

Shipping calculated at checkout.
Calibrations
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Additional Features:

  • Helps to quickly solve your toughest design intregration and debug problems
  • The unit couples powerful analyzis, the benefits of a windows interface and the measurement capabilities of the popular Agilent 16500C logic analysis system in one easy-to-learn and use measurement system
  • You can view the same measurement data simultaneously in different display modes, including waveform, listing, chart, and statistical distribution
  • Drag-and-drop markers provide time correlation across all displays
Share on
View full details
More Details
Specifications
Manuals

The Agielnt 16505A prototype analyzer creates a new visual analysis environment for digital design teams doing prototype integration, verification, debug, and root-cause analysis. The prototype analyzer works as an analysis and display processor for the logic analysis system.

Model No

16505A

Condition

Used

Manufacturer

Agilent

Channels

100

HP_16505A_Installation_Guide
