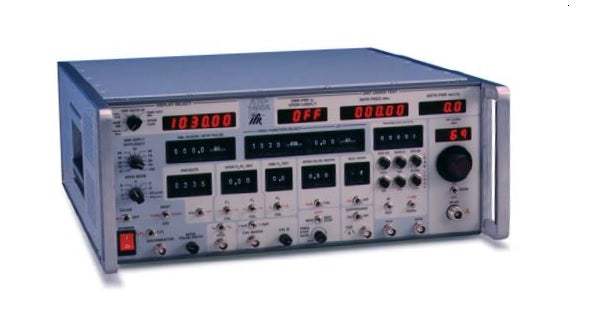

ATC-1400A Aeroflex Test Set Used

ATC-1400A Aeroflex Test Set Used

Calibrations
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Continuous display of UUT, PRF, % reply and transmitter frequency and power
  • Variable SLS and Echo Pulse Level
  • Digital display of decoded transponder reply pulses
  • Acceleration, velocity and range DME Modes
Share on
View full details
More Details
Specifications
Datasheets

Signal Generator

  • Range: 952.01 to 1222.99 MHz, selectable in 0.01 MHz increments
  • Accuracy: ±0.001%
  • ΔF: ±9.99 MHz in 0.01 MHz increments from the selected frequency

Power

  • Source Voltage and Frequency: 100 to 120 VAC, 60 Hz; 220 to 240 VAC, 50 Hz.
  • Power Consumption: 120 W maximum; 94 W nominal at 115 VAC; 86 W nominal at 230 VAC
  • Nominal Input Current: 1.49 A at 115 VAC; 0.88 A at 230 VAC
  • Electromagnetic Compatibility: Complies with the limits specified in the following standards: EN 55011:1991 Class B; EN 50082-1
  • Safety: Conforms with EN 61010-1 for class 1 portable equipment.
  • Temperature: 5° to 40°C
  • Relative Humidity: ≤80% for temperatures up to 31°C, decreasing linearly to 50% at 40°C
  • Altitude: ≤4000 m (13,124 ft)
  • Mains Supply Fluctuations: ≤±10% of the nominal voltage
  • Transient Overvoltages: According to installation category II
  • Pollution Degree: 2
  • Dimensions: 426 mm wide, 185 mm high, 467 mm deep; 16.8 in. wide, 7.3 in. high, 18.4 in. deep

The ATC-1400A is a microprocessor-based test set designed to accomplish comprehensive testing of modern ATC transponder and DME equipment.

Model No

ATC-1400A

Condition

Used

Manufacturer

Aeroflex

Aeroflex ATC-1400A
