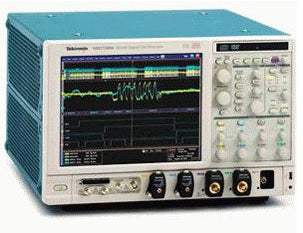

MSO70404 Tektronix Mixed Signal Oscilloscope Used

MSO70404 Tektronix Mixed Signal Oscilloscope Used

Check Pricing
Request a Quote

Request a Quote To Get A EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • 16 GHz Bandwidth -  The high bandwidth enables measurement on the latest high-speed serial standards
  • 50 GS/s Real-Time Sample Rate
  • Up to 250 Megasample Record Length with MultiView Zoom™ Feature for Quick Navigation
  • Fastest Waveform Capture Rate with >300,000 wfms/s maximum per channel
  • Superior Signal Integrity and Excellent Signal-to-Noise Ratio – Observe the truest representation of your waveform
  • Pinpoint® Triggering – Minimize time spent trying to acquire problem signals for efficient troubleshooting and shortened debug time
  • 5 Gb/s Real-time Serial Trigger – Assures triggering on the first instance of a specified NRZ or 8b/10b pattern to allow isolation of pattern-dependent effects
  • Search & Mark – Provides waveform pattern matching and software triggers for signals of interest
  • 16 Logic Channels with 80 ps Timing Resolution for Debug of Digital and Analog Signals
  • Analog Views on any Connected Digital Channel - Provides unsurpassed versatility and debugging insight across all 20 channels
  • P7500 TriMode™ Probing System – Perfectly matched signal connectivity from 4 GHz to 20 GHz
  • Application Support for High-speed Serial Industry Standards, RF, Power Supplies and Memory – Enables standard-specific certification, measurement automation, and ease of use
  • More than 30 Analysis Suites - Includes I2C and SPI bus analysis, DPOJET for jitter and eye diagram analysis, DDRA for DDR Memory Bus Verification, SDLA for EQ/channel emulation and analysis, and SignalVu for Frequency Domain display and analysis
  • P6780 and P6717 High Performance 17 Channel Logic Probes with Bandwidths up to 2.5 GHz for Connections to the Fast Digital Signals of Today
Share on
View full details
More Details
Specifications
Datasheets

The MSO70000 Series combines the signal visibility and timing features of a high performance logic analyzer with the analog precision, probing, and usability of a high performance real-time oscilloscope.
This makes it the ideal debug and verification tool for such demanding high-speed design applications as DDR memory, high performance ASICs, FPGAs, system-on-a-chip devices, and digital RF.  In addition, the MSO70000 delivers the widest variety of probing accessories for making both analog and digital connections to the device under test (DUT) with minimal disruption.
The MSO70000 family of performance MSOs enhances debugging by providing a full suite of measurement capability in a single instrument, making it the ideal choice for resolving analog issues in digital systems.

Model No

MSO70404

Condition

Used

Manufacturer

Tektronix

Tektronix MSO DPO70000 Datasheet
