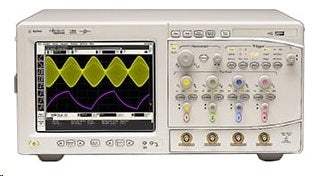

• DSO81004B Agilent Keysight HP Digital Oscilloscope
1 1
Used
Compare

DSO81004B Agilent Digital Oscilloscope Used

DSO81004B Agilent Digital Oscilloscope Used

Check Pricing
Request a Quote

Request a Quote To Get A EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

10-GHz Bandwidth, upgradeable to 13 GHz

  • 4 analog channels
  • Up to 40 GSa/s sample rate
  • XGA display with 256 levels of intensity grading
Share on
View full details
More Details
Specifications
Datasheets

Industry Leading Signal Integrity

  • Noise floor: 342 uV @5 mV/div
  • Trigger jitter < 500 fs (rms)
  • Lowest hardware vertical sensitivity: 5 mV/div
  • Industry´s only noise reduction option (opt 005)

Largest Selection of Application Solutions

  • Complete set of jitter analysis packages
  • Complete set of customization packages including User Defined Functions, link to MatLab®
  • Compliance solutions for many serial standards like HDMI1.3, Serial ATA 3Gbps, Certified Wireless USB and more Compliance solutions

InfiniiMax Probing Solutions (1.5 GHz - 12 GHz)

  • Industry´s lowest noise floor probing system
  • Highest signal fidelity InfiniiMax II probing system
  • Interchangeable probe heads
  • Industry´s only RoHS compliance solder-in probing solution

The Infiniium 8000 Series oscilloscopes offer designers the industry's first oscilloscope family with responsive deep memory, superior signal viewing and advanced analysis. The four digital storage oscilloscopes (DSOs) and mixed signal oscilloscopes (MSOs) combine the best in signal viewing with patented next-generation MegaZoom technology that maps the industry's deepest and most responsive memory to a high-definition display system that uncovers even the most subtle details in long, complex waveforms. Next-generation MegaZoom technology enables designers to capture analog and digital signals over long time spans, easily view critical events, and perform robust signal analysis all with a single instrument. Several memory options for up to 128 Mpts of deep memory are available and are affordably priced to meet your performance needs and fit within your budget.

Agilent's Infiniium mixed signal oscilloscopes (MSOs) tightly integrate 4 scope channels and 16 digital channels in the same acquisition system to provide time-correlated viewing and triggering across 20 channels for the best mixed-signal embedded debug tool.

Model No

DSO81004B

Condition

Used

Manufacturer

Agilent

Agilent Technologies Infiniium 8000 Series Oscilloscopes Data Sheet
