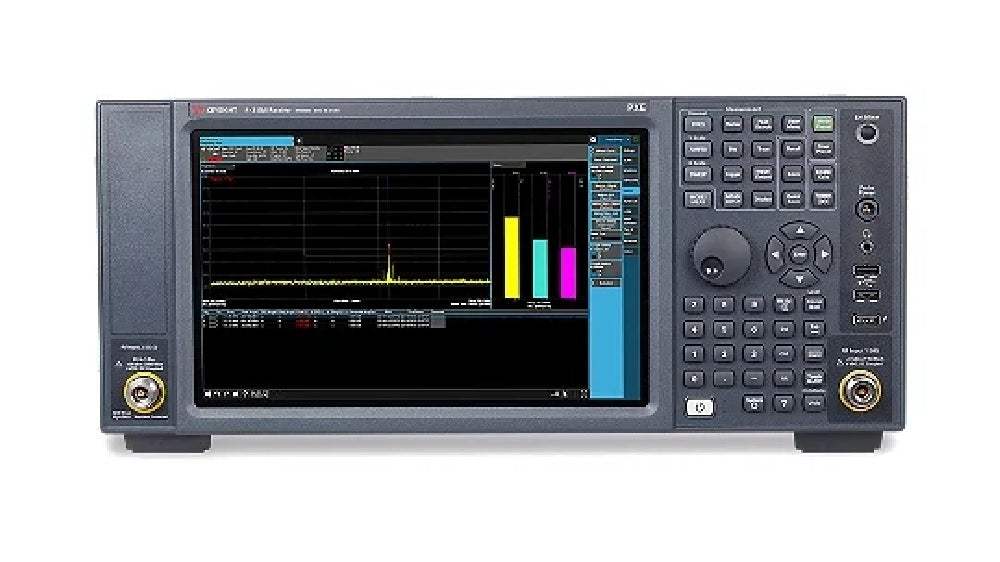

N9048B Keysight Receiver Used

N9048B Keysight Receiver Used

Check Pricing
Request a Quote

🎓 Request a Quote To Get An EDU Discount

Features:

  • PXE EMI Test Receiver, 1 Hz to 44 GHz
  • DANL @1 GHz: -174 dBm
  • Maximum Analysis Bandwidth: 40 MHz
  • Maximum Real-Time Bandwidth: 350 MHz
  • Phase Noise @1 GHz (10 kHz offset): -114 dBc/Hz
  • Type: Benchtop
View full details
More Details
Specifications
Datasheets

Accelerate EMC Compliance Testing

Keysight's N9048B PXE is a standards-compliant EMI test receiver equipped with an RF pre-selector and LNA designs. Shorten your overall test time and easily perform gapless signal capture and analysis with real-time scan (RTS) capabilities.

  • Frequency range of 1 Hz – 44 GHz
  • Fully CISPR 16-1-1:2019, MIL-STD-461G, ANSI C63.2, and FCC compliant
  • Industry leading sensitivity and dynamic range
  • Time domain scan (TDS) significantly reduces overall test time
  • Intuitive multi-touch user interface and PXE software
  • X-Series upgradability to meet present and future test needs

Test EMI with Confidence

Keysight N9048B is a high-performance EMI receiver and diagnostic signal analyzer built on an upgradeable platform. Get the accuracy, repeatability, and reliability you need to test with confidence.

  • Select from wider analysis bandwidth options
  • Maximize measurement sensitivity with the built-in pre-amplifier
  • Gain leverage with the multi-touch user interface and EMC measurement application software
  • Use real-time scan (RTS) for gapless signal capture and analysis in up to 350 MHz bandwidth, simultaneously viewing frequency domain, time domain, and spectrogram

Model No

N9048B

Condition

Used

Manufacturer

Keysight

Keysight Technologies N9048B
