8474C Keysight Detector New

Name: 8474C Keysight Detector New
Brand: Keysight
SKU: keysig_8474c_new
Price: 1689.0 USD
Availability: InStock

$1,689

$1,689 $0

Shipping calculated at checkout.

Product variants

Estimated Delivery in

5 - 7

business days (based on availability)

Request a Quote To Get A EDU Discount

Features:

Frequency Range: 10 MHz to 33 GHz
Frequency Response: ± 0.45 dB to 26.5 GHz, ± 0.7 dB to 33 GHz
Maximum SWR: 1.4 to 26.5 GHz, 2.2 to 33 GHz
Low Level Sensitivity: > 0.4 mV/uW
Maximum Operating Input Power: 200 mW
Typical Short-term Maximum Input Power (< 1 minute): 1 W
Output Polarity: Negative
Input Connector: 3.5 mm male

View full details

More Details

Specifications

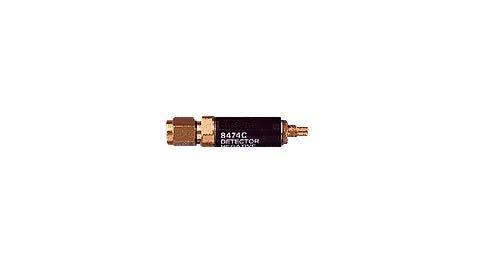

The Keysight 8474C is a high-performance detector using a gallium arsenide, planar-doped barrier detecting element. It features extremely flat frequency response over its entire band of operation and very good frequency response stability versus temperature. The Keysight 8474C is also very rugged with high resistance to ESD damage. The Keysight 8474C detector is available with a 3.5-mm (mates with SMA, 0.01 to 33 GHz) connector. This detector offers the options for optimal sqaure-law loads (Option 102) and for positive polarity output (option 103). Because the unit-to-unit frequency response tracking of this device is typically better than ±0.3 dB, no matched response option is offered.

Model No

8474C

Condition

New

Manufacturer

Keysight
