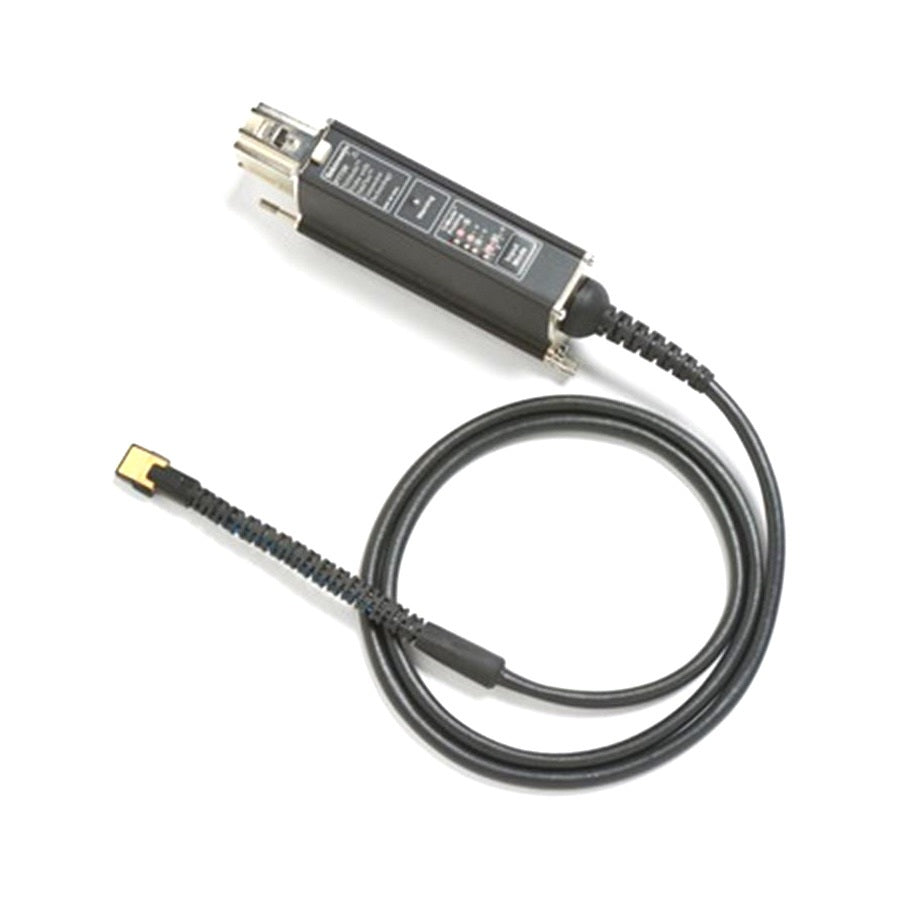

P7708 Tektronix Probe Used

P7708 Tektronix Probe Used

$5,995
$5,995 $0
In Stock
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)

Request a Quote To Get A EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • High bandwidth for signal fidelity
    • 8 GHz
Share on
View full details
More Details
Specifications
Datasheets
  • Minimal device impact
    • Thin and flexible solder tips
    • Lightweight and flexible probe cable
    • Active buffer tip design for low probe loading
  • Easy to connect TekFlex™ Connector technology
    • Pinch-to-Open accessory connector
    • Versatile Connectivity - solder-down tips, optional browser for handheld or fixtured probing, and coaxial input (SMA adapter)
    • Full Bandwidth to 20 GHz
    • Probe cable and solder-down tips operate over an extended temperature range
  • Probe and tip specific S-parameters
    • Full AC calibration of the probe and tip's signal path based upon unique s-parameter models
    • Unique DSP filters created for each probe and tip
  • TekConnect® interface for oscilloscope/probe control and usability
    • Direct control via probe buttons or from the oscilloscope's menus
    • Automated control of probe settings via the oscilloscope
    • Automatic recognition of the probe and tip when attached to the oscilloscope

    The P7700 Series TriMode probes provide the highest probe fidelity available for real-time oscilloscopes. In addition, with connectivity innovations such as solder down tips with the probe’s input buffer mounted only a few millimeters from the end of the tip, the P7700 series probes provide unmatched usability for connecting to today’s most challenging electronic designs.

    Applications

    • DDR/LPDDR memory verification
    • High speed serial bus debugging
    • MIPI D-PHY/C-PHY/M-PHY conformance tests
    • HDMI and DisplayPort compliance tests

    Model No

    P7708

    Condition

    Used

    Manufacturer

    Tektronix-3

    Tektronix TDP7000 Series Probe Family
