Additional Features:

  • Optical to Electric Converter Head
  • DC to 20 GHz optical bandwidth
  • 328.5 ps optical impulse response (FWHM) with the SD-24 and SD-26
  • 1200 nm to 1650 nm Spectral Response
  • Mean Optical Power Monitor function
Share on
View full details
More Details
Specifications

Optical-to-Electrical Converter Head Pulse Characteristics

  • Response Bandwidth: DC – 20 GHz
  • Wavelength Range: 1200 to 1650 nm
  • Optical Pulse Response Speed: 22 ps max Full Width Half Maximum
  • Conversion Factor: 35 mW/V
  • Conversion Gain: 29 mV/mW
  • Equivalent Display Noise: with SD-22 ≤16 µWRMS typical; with SD-24/SD-26 346 µWRMS typical
  • Aberrations: <10% peak to peak in the first 400 ps following pulse input
  • Linear Response Range: ≤25 mW peak power; ≤5 mW mean power
  • Maximum Operating Input 25 mW peak power; 5 mW average power

Optical-to-Electrical Converter Head Power Meter Characteristics

  • Dynamic Range: 5 nW to 5 mW
  • Linear Response Range: Range 1: <5 µW mean, <25 mW peak; Range 2: <5 mW mean, <25 mW peak
  • Sensitivity: Range 1 1 V/mW; Range 2 1 V/µW

Environmental and Mechanical Characteristics

  • Height: 71 mm (2.9 inches)
  • Width: 23 mm (0.95 inch)
  • Depth: 95 mm (3.9 inches)
  • Ambient Temperature: Operating: 0° C to 50° C (32° F to 122° F); Nonoperating: –55° C to +75° C (–67° F to +167° F)
  • Altitude: Operating: to 4.5 km (15,000 ft.); Nonoperating: to 15 km (50,000 ft.)
  • Humidity: to 95% relative humidity at up to 50° C (122° F)
  • Electromagnetic Compatibility: Meets FCC Part 15J Class B

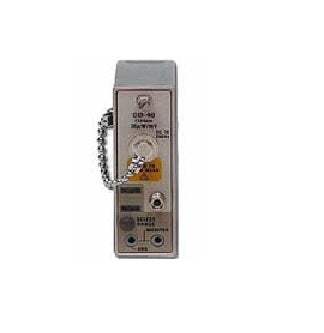

The SD-46 Optical-to-Electrical Converter Head is high-performance optical heads for use in the 11800 Series Digital Sampling Oscilloscopes (including the SM-11 Multi-channel Unit) and the CSA 803 Communications Signal Analyzer. The SD-46 Optical-to-Electrical Converter Head is used with SD-22, SD-24, and SD-26 Sampling Heads. The SD-46 converts an optical signal into an electrical signal which serves as the input to an SD Series Sampling Head.

Signal input is through an FC/PC connector, electrical output through a 3.5 mm connector for connecting to the input of an SD-24 or SD-26 sampling head installed in the slot immediately to the left of the SD-46, using a semi-rigid link cable originally included with the converter.

Model No

SD46

Condition

Used

Manufacturer

Tektronix
