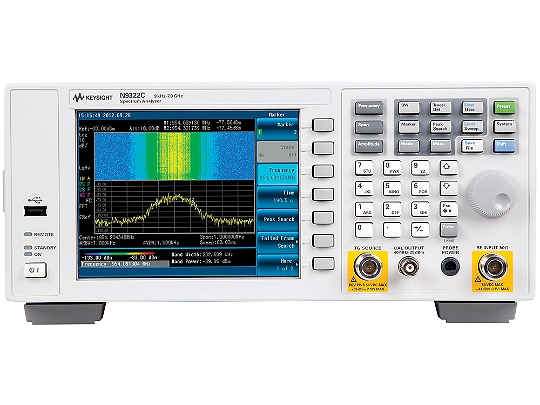

N9322C Agilent Spectrum Analyzer Used

N9322C Agilent Spectrum Analyzer Used

Shipping calculated at checkout.
Calibrations
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

AdditionalĀ Features:

  • Frequency range: 9 kHz to 7 GHz
  • Optional 7 GHz internal pre-amplifier
  • Optional 7 GHz tracking generator with built-in VSWR bridge
  • Optional AM/FM, ASK/FSK demodulation analysis
  • Ā±0.3 dB absolute amplitude accuracy
  • -90 dBc/Hz phase noise at 10 kHz offset, +11 dBm third order intercept (TOI)
  • -152 dBm displayed average noise level (DANL)
  • Ā±0.7 dB frequency response
  • Agilent PowerSuite one-button power measurements: Channel power, OBW, ACPR, SEM (standard); spectrogram (optional)
  • Channel scanner measures up to 20 channels simultaneously
  • Reflection measurements include: return loss, insertion loss and distance-to-fault
  • Time-gated spectrum analysis
  • USB and LAN connectivity (standard), GPIB interface (optional)
  • SCPI commands compatible with ESA spectrum analyzers
  • Supported by Agilent HSA and BSA PC software
Share on
View full details
More Details
Specifications
Datasheets

Model No

N9322C

Condition

Used

Manufacturer

Agilent

Frequency

7 GHz
