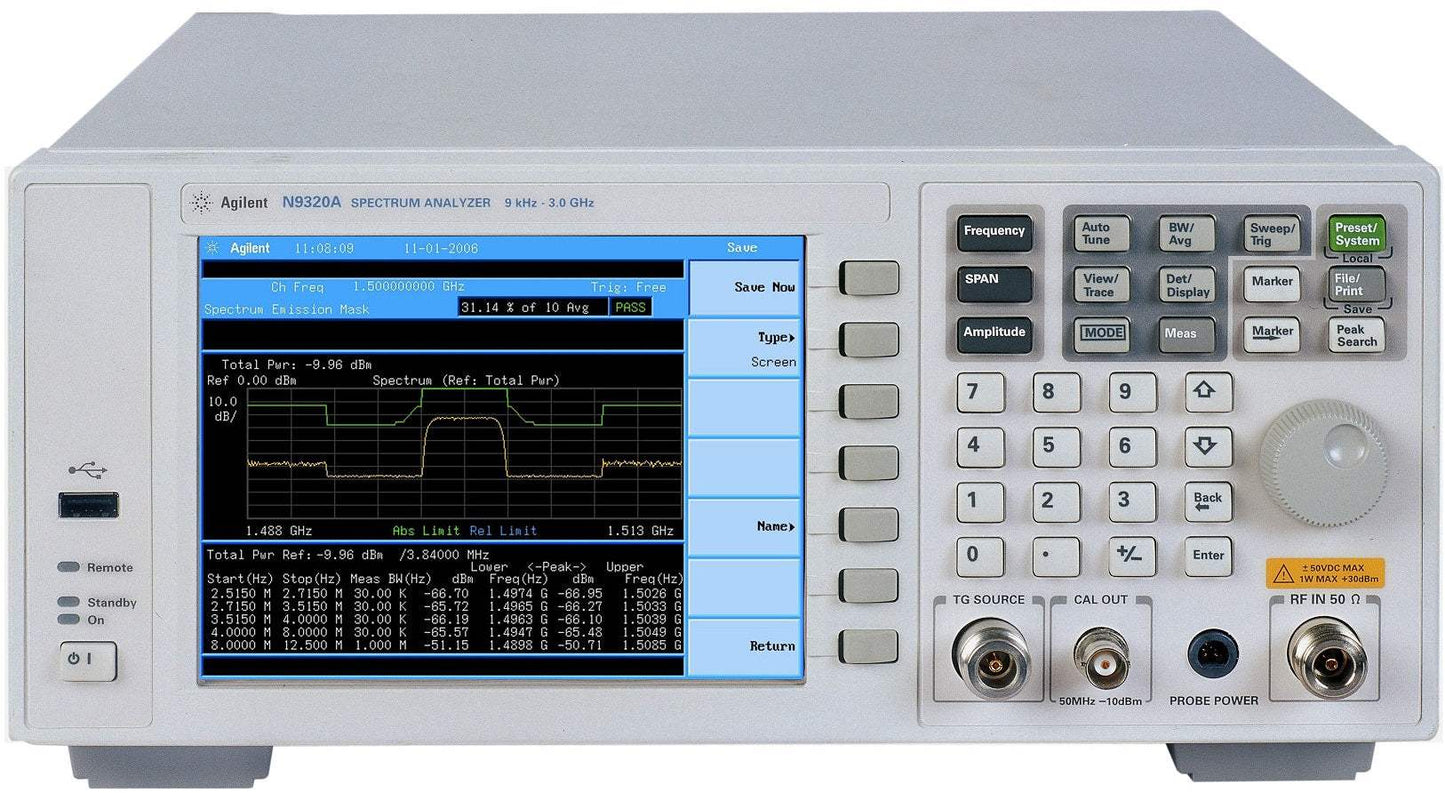

Agilent N9320A 3 GHz Spectrum Analyzer (Pre-Owned)

Key Features At A Glance

  • 9 kHz to 3 GHz frequency range on a 50 Ω N-type RF input
  • Resolution bandwidth from 10 Hz to 1 MHz in a 1-3-10 sequence
  • Displayed average noise level to –148 dBm with optional 3 GHz preamplifier
  • +13 dBm nominal third-order intercept across 100 MHz to 3 GHz
  • Non-zero span sweep time as fast as 9.2 ms
  • Built-in power suite: channel power, occupied bandwidth, ACP, TOI, emission mask
  • USB host ports front and rear with PC virtual-panel software for control and logging
  • Optional 3 GHz tracking generator, preamplifier, rack-mount and hard transit case
View full details
More Details
Specifications
Options
Datasheets

The Agilent N9320A is a general-purpose RF spectrum analyzer covering 9 kHz to 3 GHz, positioned within Agilent's compact, low-cost series of sources and analyzers. It is built to deliver the essentials of an Agilent spectrum analyzer with a price/performance combination intended to be easy to afford. The instrument combines a large, full-color front-panel display with a straightforward user interface modeled on other Agilent spectrum analyzers, so setup and measurement stay simple.

The N9320A is aimed at low-cost manufacturing test of consumer and general-purpose RF electronics — including RFID/DSRC systems, Wi-Net/WiMAX devices, cordless phones, and TV, radio, and DAB equipment — where it performs spectrum tests, power measurements, and EMI/RFI evaluation. It also supports RF component characterization of filters, mixers, and antennas, measuring distortion, frequency response, and gain/loss. Beyond the production line, the analyzer is applied to R&D and new RF design verification, field installation and maintenance, bench repair, and education.

ValueTronics stocks and holds its own inventory in a 20,000-square-foot secure warehouse at 1675 Cambridge Drive in Elgin, Illinois. Every pre-owned unit is inspected and functionally verified in-house before it ships, while new units leave the warehouse factory-sealed exactly as received from the manufacturer.

Brand Heritage

This instrument carries the Agilent Technologies name. Agilent was spun out of Hewlett-Packard's test and measurement business in 1999, and that electronic measurement business was subsequently established as Keysight Technologies in 2014.

Accessories Supplied

  • User's Guide (hard copy and on CD-ROM; Chinese for mainland China, English for other countries and regions)
  • Programming Reference Guide on CD-ROM (English language)

Product Core & Specifications

Important: Maximum input: +40 dBm average continuous power with input attenuator ≥ 10 dB, +50 dBm peak pulse power, and 50 VDC maximum.
Recommended pairing: the Agilent N9310A RF Signal Generator (9 kHz to 3 GHz with I/Q modulation) is named as an ideal companion signal source for the N9320A.

About this Pre-Owned unit

This pre-owned unit is inspected and functionally verified in-house before it ships and is backed by our pre-owned warranty. To confirm its exact condition, firmware revision, installed options, or included accessories for your application before ordering, contact our Test Architects.

  • Warranty included
  • Functional verification included
  • Standard Calibration Upgrade Options: No Calibration Required, NIST Traceable, Z540.1 or ISO 17025 with Data, Z540.3 Guardbanding with Data.
  • Note that unnecessary accessories may not be included (contact Test Architect to confirm).

ValueTronics supplies both new and used test and measurement equipment. New units ship factory-sealed, exactly as received from the manufacturer; every used unit is inspected and functionally verified in-house at our 20,000 sq ft secure facility in Elgin, Illinois before it ships. Our Test Architects can help you select the condition, calibration, and configuration that fit your application.

Please review the Manufacturer's Data Sheet to verify published specifications. Feedback on this webpage is always welcome — please reach out to your Test Architect at any time for questions or concerns. Thank you, we truly appreciate you being our customer.

Model No

Agilent

Condition

Pre-Owned

Manufacturer

Agilent Technologies

Spec_ana_freq

9 kHz to 3 GHz

PA3

3 GHz preamplifier

Agilent N9320A
