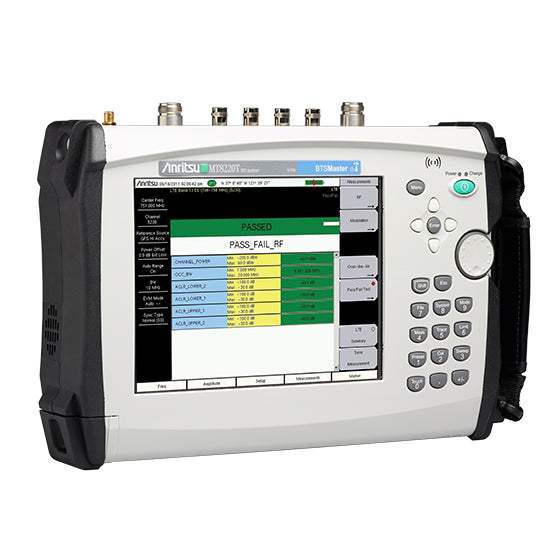

The Anritsu MT8220T BTS Master is a high-performance handheld Base Station Analyzer built for the installation and maintenance of wireless networks. It is an all-in-one, touchscreen handheld instrument that combines cable and antenna testing, signal analysis for cellular standards, ultra-sensitive spectrum analysis, interference tracking, and a vector signal generator for receiver testing in a single compact unit. The instrument ships with a standard three-year warranty.
Within wireless network installation and maintenance, the MT8220T addresses several distinct workflows. As a cable and antenna analyzer it measures return loss, VSWR, cable loss, distance-to-fault, phase, and gain for line-sweep verification of feedlines and antenna systems. As a spectrum and interference analyzer it supports occupied bandwidth, channel power, ACPR, carrier-to-interference, field strength, and spectral emission measurements, along with interference-tracking tools such as spectrogram, signal strength, RSSI, and Signal ID. Coverage mapping plots RSSI on an on-screen map, and interference mapping supports on-screen triangulation.
ValueTronics stocks and holds its own inventory in a 20,000 square foot secure warehouse at 1675 Cambridge Drive in Elgin, Illinois. Pre-owned instruments are inspected and functionally verified in-house by our technicians before they ship, while new units leave factory-sealed exactly as received from the manufacturer, so buyers get the condition they expect with the backing of a dedicated test-equipment specialist.
| Specification | Value |
|---|---|
| Cable and Antenna Analyzer | |
| Measurements | VSWR, Return Loss, Cable Loss, Distance-to-Fault (DTF) VSWR, DTF Return Loss, 1-port Phase, 2-port Phase, 2-port Gain, Smith Chart |
| Frequency Range | 400 MHz to 6 GHz |
| Frequency Accuracy | ± 3.0 × 10–6 |
| Frequency Resolution | 1 kHz (RF immunity low); 100 kHz (RF immunity high) |
| Output Power, High | –7 dBm, typical, 1 or 2-port |
| Output Power, Low | –40 dBm, typical, 2-port |
| Dynamic Range, 400 MHz to 2800 MHz (output power high, 25-trace average) | > 100 dB, 110 dB typical |
| Dynamic Range, > 2800 MHz to 4000 MHz | > 90 dB |
| Dynamic Range, > 4000 MHz to 6000 MHz | > 85 dB |
| Interference Immunity, On-Channel | +17 dBm @ >1.0 MHz from carrier frequency |
| Interference Immunity, On-Frequency | +10 dBm within ±10 kHz from the carrier frequency |
| Measurement Speed, Return Loss | ≤ 4.5 ms/data point, RF immunity low, typical |
| Measurement Speed, Distance-to-Fault | ≤ 4.5 ms/data point, RF immunity low, typical |
| Return Loss Measurement Range | 0 dB to 60 dB (Resolution 0.01 dB) |
| VSWR Measurement Range | 1:1 to 65:1 (Resolution 0.01) |
| Cable Loss Measurement Range | 0 dB to 30 dB (Resolution 0.01 dB) |
| 2-Port Gain Measurement Range | –120 dB to +100 dB (Resolution 0.01 dB) |
| DTF Vertical Range, Return Loss | 0 dB to 60 dB |
| DTF Vertical Range, VSWR | 1 to 65 |
| DTF Fault Resolution (m) | (1.5 × 108 × Vp) / ΔF |
| DTF Horizontal Range (m) | 0 to (Data Points-1) × Fault Resolution, to a maximum of 1500 m (4921 ft) |
| Phase (1- and 2-Port) Measurement Range | –180° to +180° (Resolution 0.01°) |
| Smith Chart Resolution | 0.01 |
| Corrected Directivity | > 42 dB |
| Data Points | 137, 275, 551 |
| Calibration | OSL and FlexCal |
| Spectrum Analyzer | |
| Frequency Range | 150 kHz to 7.1 GHz (usable to 0 Hz) |
| Maximum Continuous Input | +30 dBm |
| Tuning Resolution | 1 Hz |
| Frequency Reference | Aging: ± 1.0 × 10–6/10 years |
| Frequency Span Accuracy | ± 3 × 10–7 (25 °C ± 25 °C) + aging, 10 Hz to 7.1 GHz including zero span |
| Sweep Time | Minimum 100 ms, 10 µs to 600 s in zero span |
| Sweep Time Accuracy | ± 2 % in zero span |
| Resolution Bandwidth (RBW) | 1 Hz to 3 MHz in 1–3 sequence ± 10 % (–3 dB bandwidth) |
| Video Bandwidth (VBW) | 1 Hz to 3 MHz in 1–3 sequence ± 10 % (–3 dB bandwidth) |
| RBW with Quasi-Peak Detection | 200 Hz, 9 kHz, 120 kHz (–6 dB bandwidth) |
| SSB Phase Noise | –100 dBc/Hz @ 10 kHz, 20 kHz, and 30 kHz offset; –102 dBc/Hz @ 100 kHz offset from carrier |
| Dynamic Range | > 95 dB (600 MHz, 3.5 GHz), 2/3 (TOI-DANL) in 1 Hz RBW |
| Measurement Range | DANL to +30 dBm |
| Display Range | 1 to 15 dB/div in 1 dB steps, ten divisions displayed |
| Reference Level Range | –120 dBm to +30 dBm |
| Attenuator Resolution | 0 dB to 65 dB, 5.0 dB steps |
| Amplitude Units, Log | dBm, dBV, dBmV, dBµV, dBW, dBA |
| Amplitude Units, Linear | nV, µV, mV, V, kV, nW, µW, mW, W, kW, fA, pA, nA, µA, mA, A |
| Residual Spurs, Preamp Off | –90 dBm, 150 kHz to 3.2 GHz; –84 dBm, > 3.2 GHz to 7.1 GHz (exception –70 dBm @ 3200 MHz) |
| Residual Spurs, Preamp On | –100 dBm, 10 MHz to 7.1 GHz (exceptions –95 dBm @ 50 MHz, 100 MHz, 150 MHz) |
| Input-Related Spurious | –60 dBc, –70 dBc typical (exception –40 dBc, –60 dBc typical @ 1672 MHz) |
| Third-Order Intercept (TOI), Preamp Off, 600 MHz | +8 dBm typical |
| Third-Order Intercept (TOI), Preamp Off, 3.5 GHz | +9 dBm typical |
| Second Harmonic Distortion, Preamp Off | –50 dBc maximum; –70 dBc typical |
| VSWR, < 4.0 GHz | 1.5:1 typical |
| VSWR, 4.0 GHz to 7.1 GHz | 1.8:1 typical |
| DANL in 1 Hz RBW (0 dB attenuation), 3 MHz to 1.0 GHz | Preamp Off –137 dBm max, –150 dBm typical; Preamp On –161 dBm max, –163 dBm typical |
| DANL in 1 Hz RBW, > 1.0 GHz to 2.2 GHz | Preamp Off –133 dBm max, –147 dBm typical; Preamp On –159 dBm max, –160 dBm typical |
| DANL in 1 Hz RBW, > 2.2 GHz to 4.0 GHz | Preamp Off –133 dBm max, –143 dBm typical; Preamp On –156 dBm max, –159 dBm typical |
| DANL in 1 Hz RBW, > 4.0 GHz to 7.1 GHz | Preamp Off –130 dBm max, –138 dBm typical; Preamp On –154 dBm max, –156 dBm typical |
| GPS Receiver | |
| High Frequency Accuracy | ± 2.5 × 10–8 with GPS On, 3 minutes after satellite lock in selected mode |
| GPS Lock Accuracy (after antenna disconnected) | ± 5.0 × 10–8 for 3 days, 0 °C to 50 °C ambient temperature |
| Connector | SMA, female |
| Supplied Antenna | 2000-1760-R GPS Antenna, SMA(m), 25 dB gain, 2.5 VDC to 3.7 VDC |
| Power Meter | |
| Frequency Range | 10 MHz to 7.1 GHz |
| Span | 1 kHz to 100 MHz |
| Display Range | –140 dBm to +30 dBm, ≤ 40 dB span |
| Measurement Range | –120 dBm to +30 dBm |
| Offset Range | 0 dB to +100 dB |
| VSWR | 1.5:1 typical |
| Maximum Power | +30 dBm without attenuator |
| Bias-Tee (Option 10) | |
| Voltage Range | +12 V to +32 V |
| Current (Low/High) | 250 mA/450 mA, 1 A surge for 100 ms |
| Resolution | 0.1 V |
| Vector Signal Generator (Option 23) | |
| Active Pattern Memory | 256 MB |
| Frequency Range | 400 MHz to 6 GHz |
| Frequency Resolution | 1 Hz |
| Frequency Accuracy | ± 3 × 10–7 (25 °C ± 25 °C) + aging |
| Output Power | –124 dBm to 0 dBm, CW; –124 dBm to –8 dBm, Modulated/Noise/Multi-carrier |
| Step Size | 0.1 dB nominal |
| Bandwidth | 1 signal to 10 MHz or 2 signals to 5 MHz each + AWGN |
| I/Q Waveform Capture (Option 24) | |
| Maximum Capture Length | 800 ms |
| Maximum Sample Rate | 40 MHz |
| Maximum Signal Bandwidth | 32 MHz |
Important: Maximum continuous input: +30 dBm. The RF In connector (Type N, female, 50 ohm) is rated to a maximum of +30 dBm and +/-50 VDC.
Important: The High Accuracy Power Meter function requires an external USB power sensor, which is sold separately and is not included with the base unit (datasheet: "High Accuracy Power Meter — Requires external USB power sensor, sold separately").
Important: CPRI Measurements (Option 750) operate over a –10 °C to +45 °C temperature range.
Important: Calibration is within the recommended 12 month period (residual specifications also require calibration kit calibration cycle adherence).
Usage tip: the Interference Analyzer option supports the Anritsu MA2700A Handheld Interference Hunter for direction-finding and interference mapping.
This pre-owned unit is inspected and functionally verified in-house before it ships and is backed by our pre-owned warranty. To confirm its exact condition, firmware revision, installed options, or included accessories for your application before ordering, contact our Test Architects.
ValueTronics supplies both new and used test and measurement equipment. New units ship factory-sealed, exactly as received from the manufacturer; every used unit is inspected and functionally verified in-house at our 20,000 sq ft secure facility in Elgin, Illinois before it ships. Our Test Architects can help you select the condition, calibration, and configuration that fit your application.
Please review the Manufacturer's Data Sheet to verify published specifications. Feedback on this webpage is always welcome — please reach out to your Test Architect at any time for questions or concerns. Thank you, we truly appreciate you being our customer.
