USB-TMS2-M01-X Teledyne LeCroy Mercury T2 USB 2.0 Standard Protocol Analyzer System New

USB-TMS2-M01-X Teledyne LeCroy Mercury T2 USB 2.0 Standard Protocol Analyzer System New

$1,152
$1,152 $1,152
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
2-3
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Mercury T2 USB 2.0 Standard Analyzer System
  • Portable and Affordable - Compact, bus-powered system measures 3.0” x 3.5”, weighs 5 oz.
  • Supports USB 2.0 - Capable of capturing all USB speeds up to 2.0 including OTG (On-the-Go)
  • 256 MB Recording Memory - Extend capture time with spool-to-disk recording
  • High Impedance probe - Non-intrusive probe preserves realworld signal and timing conditions
  • Advanced Triggering - Isolates important traffic, specific errors or patterns
  • Extensive Decodes - Mass storage, Bluetooth HCI, Hub, PTP/Still Image, Printer, Human Interface Device (HID), Audio, Video and Communication
  • Hardware Filtering - Automatically exclude non-essential traffic
  • Event Reporting - Quickly identify and track error rates, abnormal bus activity or timing conditions
View full details
More Details
Specifications
Datasheets

Specifications

  • Host Requirements: Windows 7 or Windows 8 S
  • Standard Trigger Events: Packet Identifier, Token Pattern, Frame Pattern, Device Request, Data Pattern, Bus Conditions, Errors, Transactions, Data Length, Splits
  • Reporting & Statistics :Packet Level, Transaction Level, Transfer Level, Error Reports
  • Recording Memory Size: 256 MB
  • Power Consumption Idle: 500 mA (typical); Active: 560 mA (typical)
  • Connectors: USB Standard “A” and “B” receptacles
  • Temperature Operating: 0°C to 55°C (32°F to 131°F); Non-Operating: -20°C to 80°C (-4°F to 176°F)
  • Humidity: Operating: 10% to 90% non-condensing
  • Dimensions: 80 x 90 x 24 mm (3.0” x 3.6” x 1”)

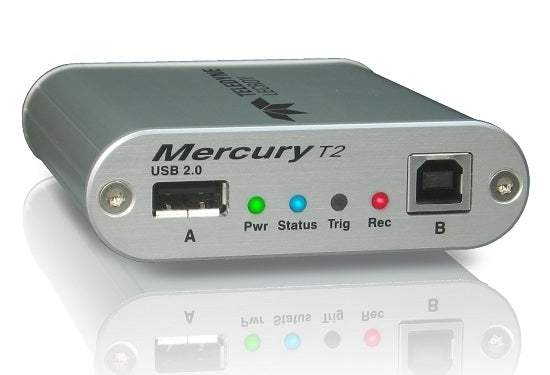

The Teledyne LeCroy Mercury T2 is the industry’s smallest, most affordable hardware-based USB 2.0 protocol analyzer that combines the de-facto standard CATC Trace display with the very latest USB class decoding. The Mercury T2 fits in a shirt pocket yet provides much of the same lab quality protocol analysis capabilities offered in Teledyne LeCroy’s top-of-the-line USB analyzers.

View and Understand USB Protocol

Featuring the industry-leading CATC Trace™ expert analysis software, the Mercury T2 system provides an easy-to-use display that graphically decodes logical protocol events. With the Standard or Advanced edition, all protocol layers can be expanded to show the underlying transactions and packets. Tooltips help explain protocol events making it easier for non-experts to identify errors.

Real Time Triggering

Isolating specific protocol events with real time triggering is essential to capture intermittent problems. The Mercury T2 provides sophisticated triggering with drag-and-drop selections for PID type, data patterns, standard requests, errors, and bus events. The Mercury T2 features 256 MB of on-board memory and also supports spool-todisk capture for extended recording.

USB Device Decoding

Comprehensive USB device class decoding is included in every model of the Mercury T2. This allows users to see upper-level mapped protocol events within the trace, eliminating the tedious process of manually decoding device specific commands.

Find the Issues Fast

The Mercury T2 provides many mechanisms to measure and report on USB traffic. The Bus Utilization display shows data, packet length, and bus usage by device. Using the Traffic Summary window, users can evaluate statistical reports at a glance or navigate to individual fields. Real time statistics show throughput by endpoint.

Model No

USB-TMS2-M01-X

Condition

New

Manufacturer

Teledyne LeCroy

Teledyne_LeCroy_Mercury_T2
