• 5335C BK Precision Power Analyzer
1 1
New
Earn Loyalty with Rewards
Compare

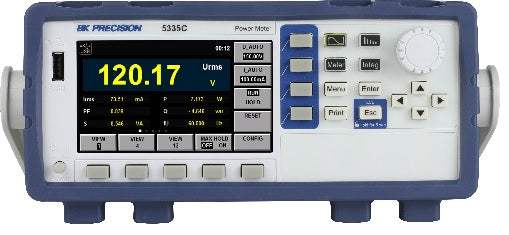

5335C B&K Precision Power Analyzer New

5335C B&K Precision Power Analyzer New

$2,845
$2,845 $2,845
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
2-3
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • 600 Vrms ( Cat II ) and 20 Arms direct input ranges
  • Frequency ranges DC, 0.5 Hz to 100 kHz
  • 0.1% basic accuracy for voltage and current measurements
  • 4.3-inch color LCD (TFT)
  • Simultaneously measure and display up to 12 different measurement parameters
  • Capture inrush current, and voltage surge with the peak function
  • Harmonic measurements to the 50th order
  • Integration function with automatic range switching
  • Ability to measure electric energy which is produced or consumed
  • Pre-compliance testing according to IEC/EN62000-3-2 / 4-7
View full details
More Details
Specifications
Datasheets

Measure power, electrical energy bought or sold back to the power grid, inverters, harmonics of motors, uninterruptible power supplies, appliances, and consumer electronics.

Rich Measurement Functions

Measure all AC and DC parameters, including power, current, voltage, power factor, frequency, and phase. Additionally, the meter features a powerful integration function, the ability to perform harmonic measurements to the 50th order and an oscilloscope mode for viewing voltage and current readings in the time domain.

12 real-time parameters can be measured and displayed simultaneously in user customizable views.

Intuitive user interface

The large 4.3 inch color LCD screen enables easy viewing of configuration and measurements. Use the dedicated function keys to select one of the 4 main measurement modes: meter, harmonic, integral or oscilloscope. The results are displayed in numeric and graphical format. Screenshots can be saved directly to a USB flash drive.

Model No

5335C

Condition

New

Manufacturer

B&K Precision

BK_Precision_5335C
