Different modes of operation turn the R&S ZNL vector network analyzer into a versatile multipurpose instrument. The B1 hardware option extends the base unit with a fully integrated spectrum analyzer on a dedicated hardware board. There is no need to reboot the instrument in order to switch between different modes.
This option provides dedicated hardware boards, delivering performance comparable to that of pure spectrum analyzers in the economy and midrange classes. The R&S ZNL equipped with the spectrum analyzer hardware features a phase noise of typ. -108 dBc (1 Hz) at 10 kHz offset, a third-order intercept point of typ. +20 dBm, and a displayed average noise level (DANL) of typ. -150 dBm.

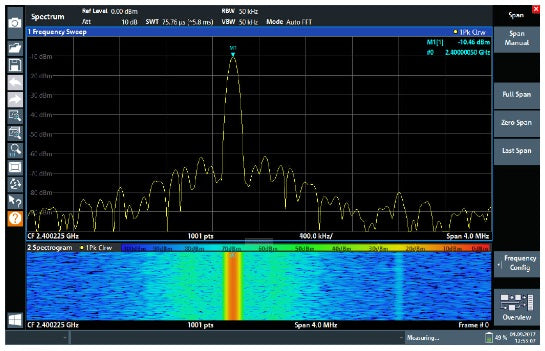

In the spectrum analyzer mode, the instrument provides functions corresponding to those of a conventional spectrum analyzer. The analyzer measures the frequency spectrum of the RF input signal over the selected frequency range with the selected resolution and sweep time. Alternatively, it displays the waveform of the video signal for a fixed frequency.
The spectrum analyzer function includes an I/Q analyzer, which is the standard function for digital signal analysis. This application provides measurement and display functions for I/Q data. The captured I/Q data can be transferred to third-party software tools (e.g. MATLAB or Python) for further analysis. The 40 MHz analysis bandwidth option (R&S FPL1-B40) allows single-carrier signals with up to 40 MHz bandwidth to be analyzed and demodulated.
*The image is for reference only. See product specifications for details.
Model No
ZNL3-B1
Condition
New
Manufacturer
Rohde & Schwarz
