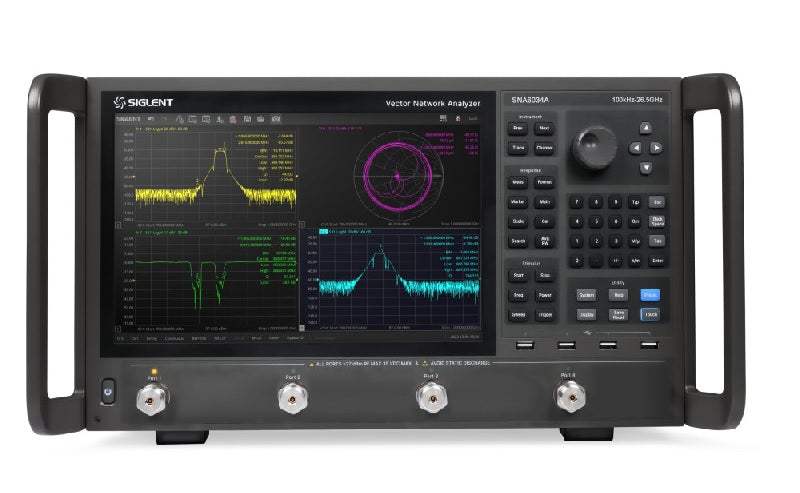

SNA6034A Siglent Network Analyzer

SNA6034A Siglent Network Analyzer

$62,386
$62,386 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Frequency ranges: 100 kHz - 13.5 GHz and 100 kHz - 26.5 GHz
  • Frequency resolution: 1 Hz
  • Level resolution: 0.05 dB
  • Range of IFBW: 1 Hz~10 MHz
  • Setting range of output level: -55 dBm ~ +10 dBm
  • Dynamic range: 135 dB
  • Internal Bias-Tee connections
  • Interface: LAN, USB Device, USB Host (USB-GPIB)
  • Remote control: SCPI / Labview / IVI based on USB-TMC / VXI-11 / Socket / Telnet / WebServer
  • Display: 12.1" touch screen
  • Video output: HDMI / DVI-D / DP
View full details
More Details
Specifications

SIGLENT SNA6000A series vector network analyzers have a frequency range of 100 kHz to 13.5 GHz and 100 kHz to 26.5 GHz, which support 2/4-port scattering parameter, differential-parameter and time-domain parameter measurements. The SNA6000A series are effective instrumentation for determining the Q-factor, bandwidth and insertion loss of a filter. It features impedance conversion, movement of measurement plane, limit testing, ripple test, fixture simulation and adapter removal/insertion adjustments. The VNAs have five sweep types: Linear-Frequency mode, Log-Frequency mode, Power-Sweep mode, CW-Time mode and Segment-Sweep mode. The SNA6000A series of VNAs also support scattering-parameter correction of SOLT, SOLR, TRL, Response and Enhanced Response for increased flexibility in R&D and manufacturing applications.

Model No

SNA6034A
