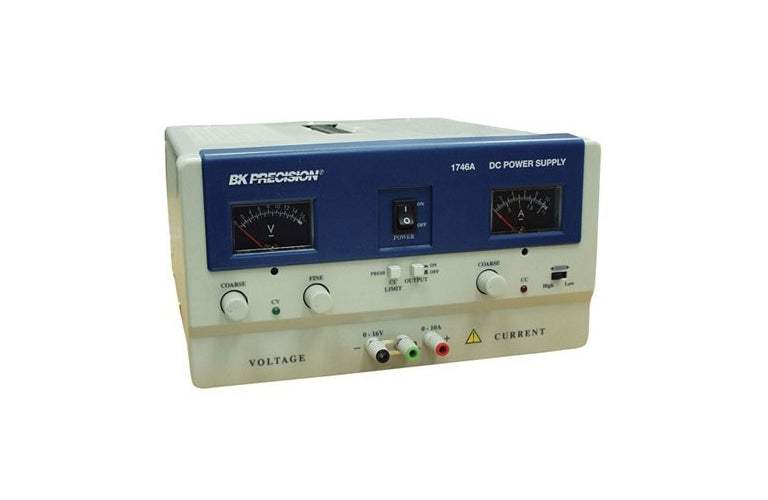

1746A B&K Precision DC Power Supply Used

1746A B&K Precision DC Power Supply Used

Calibrations
Check Pricing
Request a Quote

Request a Quote To Get A EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Select option

Additional Features:

  • Output Voltage: 0-16 V
  • Output Current: 0-10 A
  • Connect two supplies in series to double the voltage output
  • Connect two supplies in parallel to double the current output
  • Continuously monitor voltage and current output on two analog meters
  • Constant voltage or constant current operation
  • Very low ripple
  • Excellent regulation
  • Coarse and fine voltage controls
  • Fully overload protected
  • Operate continuously at full load without overheating
  • Reliable, Durable
Share on
View full details
More Details
Specifications
Datasheets
Manuals

Constant Voltage Operation

  • Voltage Regulation: Line (120 VAC ±10%) <0.2% + 2 mV; Load (no load - full load) <0.04% + 2 mV
  • Recovery Time:  <100 ÎĽs
  • Ripple & Noise: 1 mV rms (Typical)
  • Temperature Coefficient: <300 ppm/°C

Constant Current Operation

  • Adjustable Current Limit: 5% to 100%
  • Current Regulation: Line (120 VAC ±10%) <0.4% + 5 mA; Load <0.4% + 5 mA
  • Current Ripple: <3 mArms

Metering

  • Type: Analog
  • Voltmeter Range: 0-16 V
  • Voltmeter Accuracy: ±2.5%
  • Ammeter Range: High Range: 0-11 A; Low Range: 0-2.2 A
  • Ammeter Accuracy: ±2.5%

General

  • Overload Protection: Current limiting, reverse polarity, overvoltage, short circuit
  • AC Input: 120/220 VAC ±10%, 50/60 Hz
  • Power Consumption: 380 W
  • Operating Temperature: 32 to 104 °F (0 to 40 °C), <75% R.H.
  • Storage Temperature: 5 to 158 °F (-15 to +70 °C), <85% R.H.
  • Dimensions (H x W x D): 5.7” x 10.5” x 15” (145 x 267 x 381 mm)

The BK Precision 1746A  is a 0-16 V, 0-10 A DC power supply with a large array of great features not usually available in similar price range products. The output-shorting button allows the user to short the output terminals to set the current limit. The BK 1746A  also operates continuously at full load without overheating.

Model No

1746A

Condition

Used

Manufacturer

B&K Precision

Current

10 A

Voltage

16 V

Power

160 W
