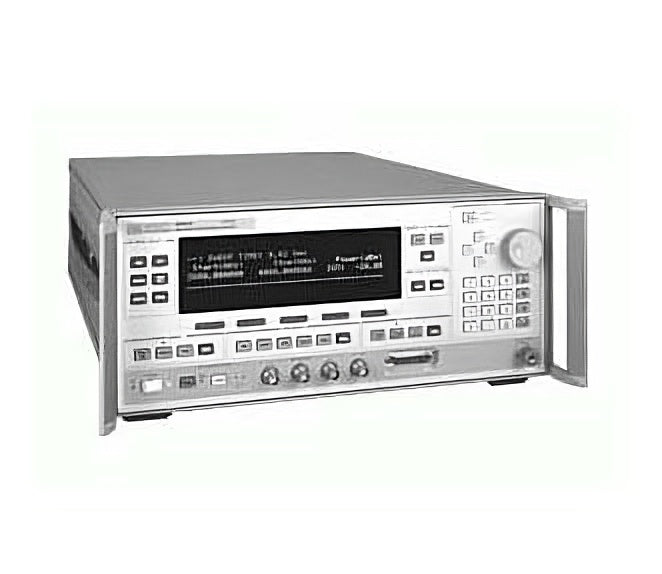

83624A Agilent Sweep Generator Used

83624A Agilent Sweep Generator Used

Calibrations
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Additional Features:

  • Frequency range: 2-20 GHz
  • Scan modulation to simulate antenna scan patterns
  • Accurate fixed and swept frequency offset for two-tone measurement
  • User flatness correction for leveling at remote points in the test system
  • General purpose source for use in component test, receiver test and for frequency conversion
  • Sweep modes: Step, List, Ramp
  • Maximum power: +20 dBm
  • Power sweep range: -20 dBm to maximum power
  • Phase noise (20 GHz at 10 kHz): -76 dBc
  • Max FM deviation (locked): +/- 8 MHz
Share on
View full details
More Details
Specifications
Options

The Agilent 83624A synthesized sweeper is the standard of excellence for applications requiring the high performance and accuracy of a synthesized source and the speed and versatility of a sweep oscillator. Synthesized broadband frequency coverage and precise 1 Hz frequency resolution (Opt 008) are generated by indirect synthesis, enabling the Agilent 83624A to achieve low single-sideband phase noise performance. It delivers harmonic performance of 25 dB below the carrier from 2.0 to 20 GHz.

Model No

83624A

Condition

Used

Manufacturer

Agilent

Frequency

20 GHz

1

Add Step Attenuator

2

Internal Modulation Generator

3

Delete Front Panel Keyboard Display

4

Rear Panel RF Output

6

Fast Pulse Modulation

8

1 Hz Frequency Resolution

H53

Passive Directional Leveling Coupler
